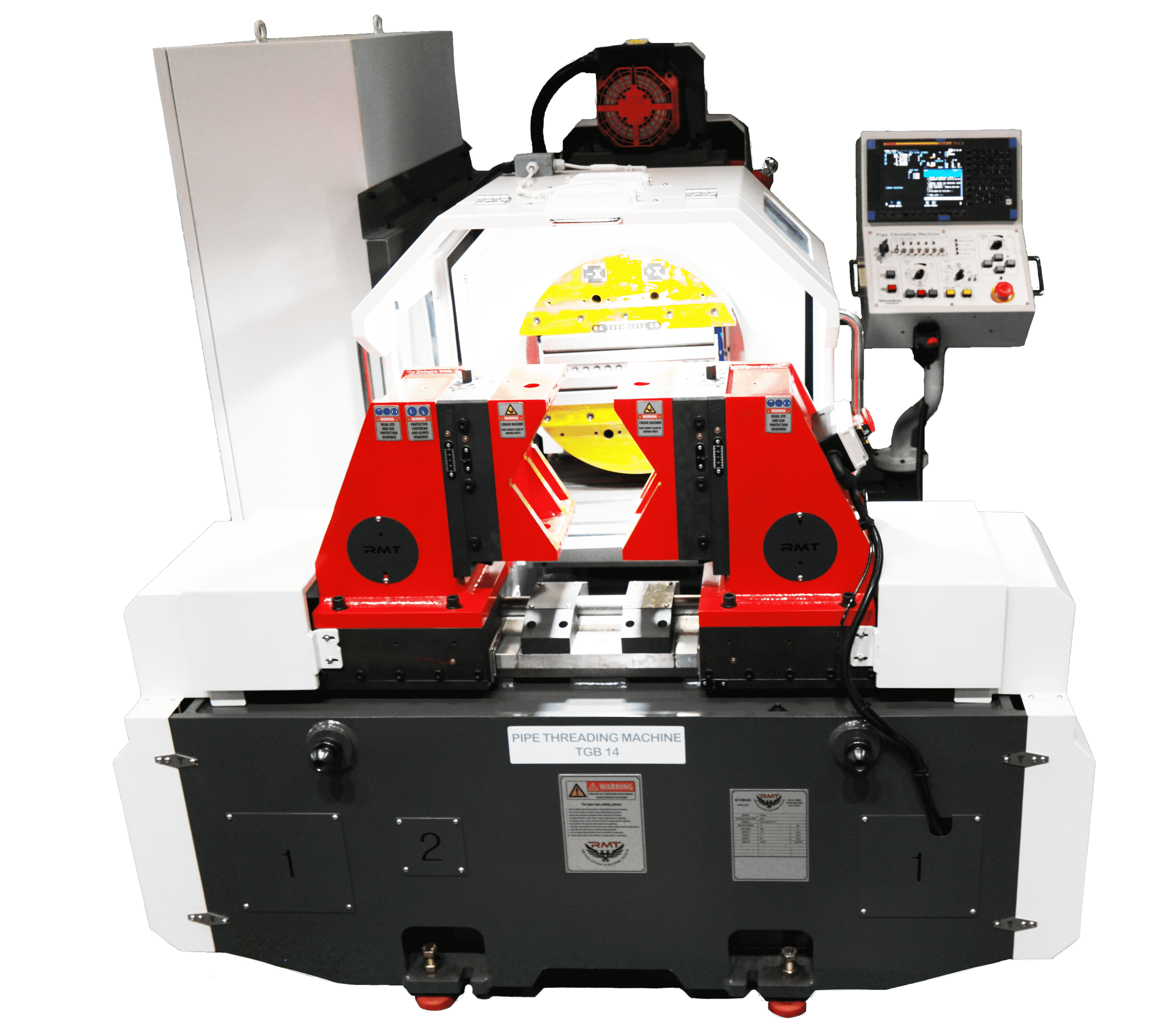

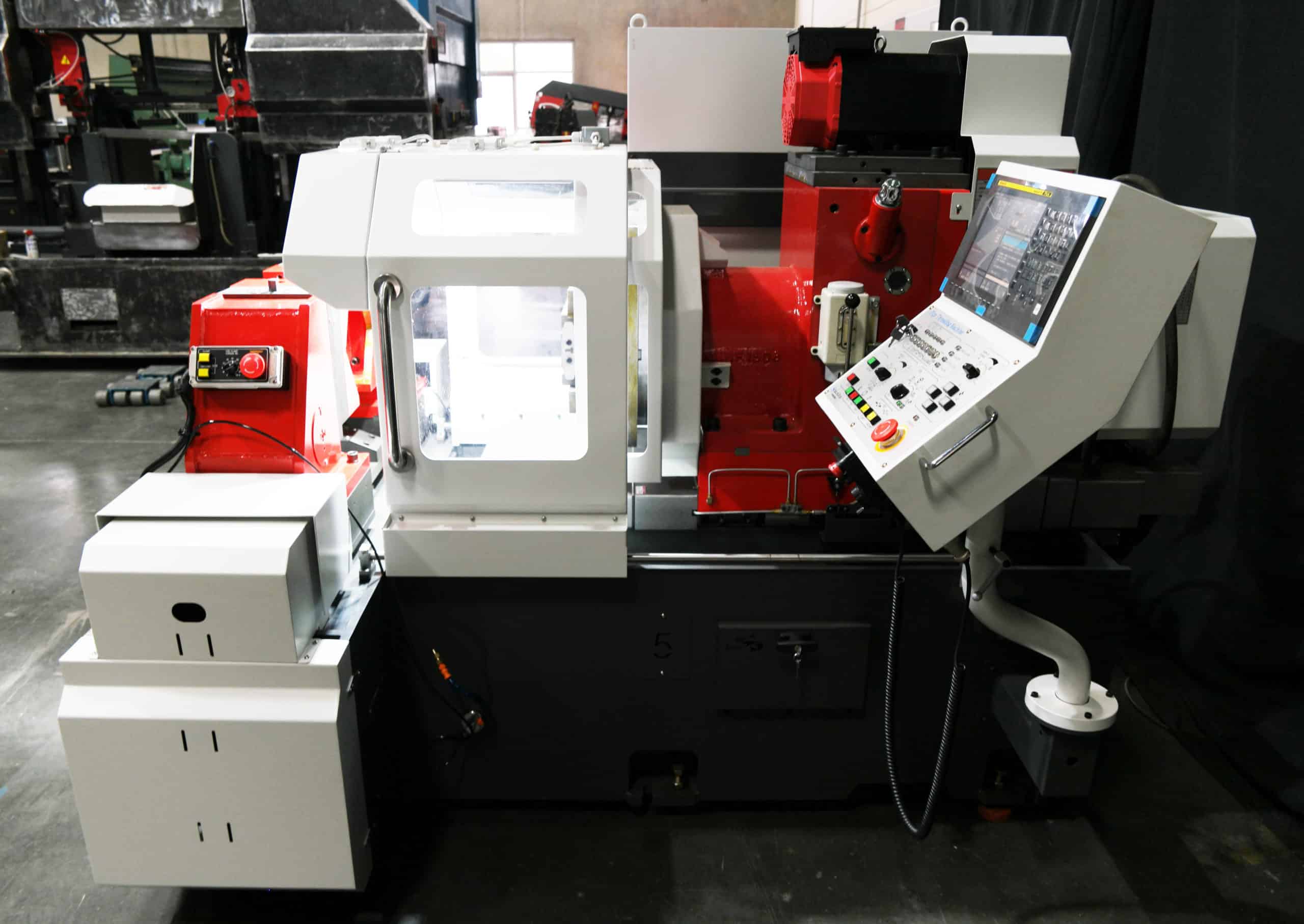

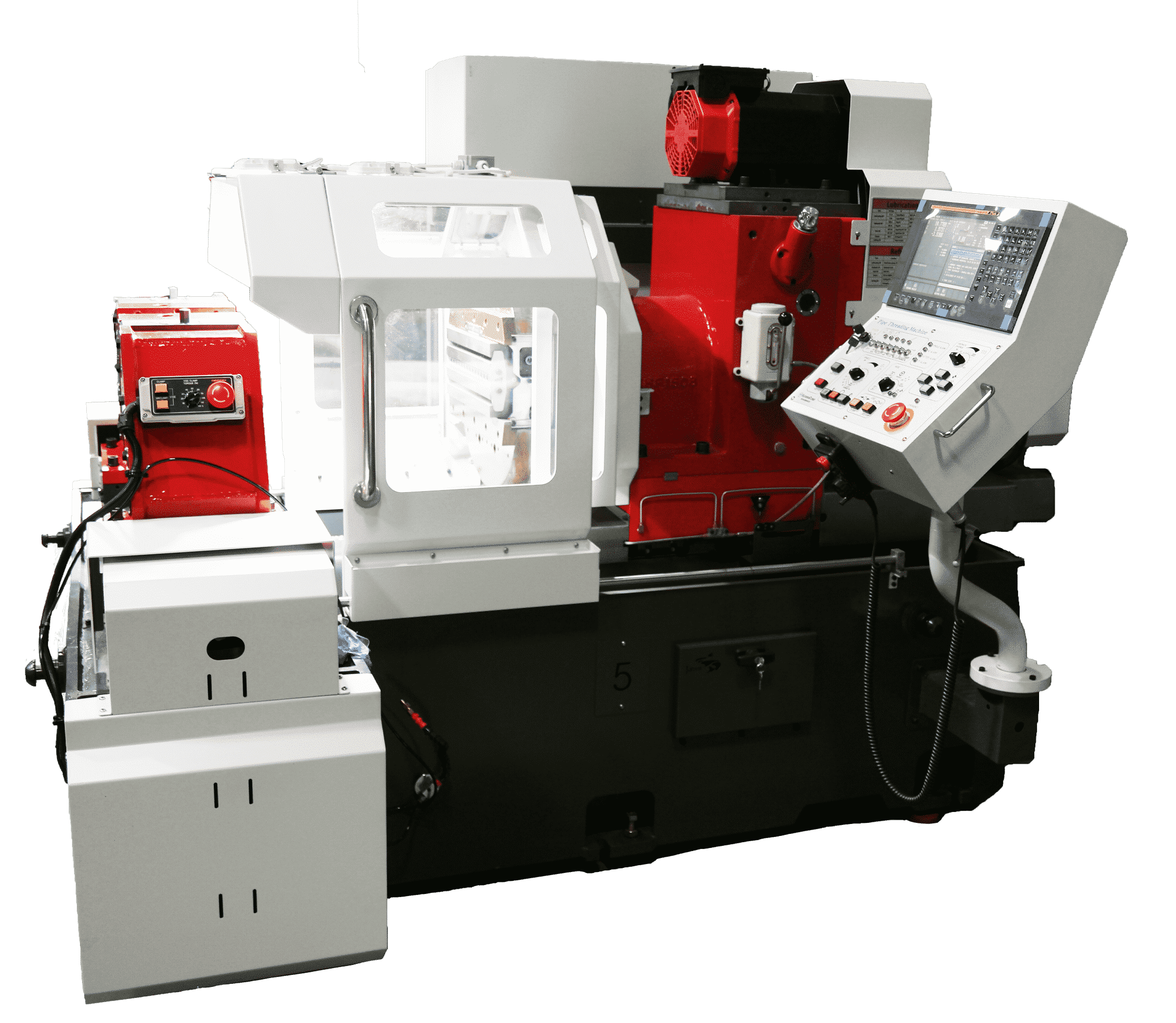

Revolution Machine Tools 10HP Pipe Spool Master 14 CNC Beveling Machine TGB14 CNC

Revolution Machine Tools 10HP Pipe Spool Master 14 CNC Beveling Machine TGB14 CNC is a Revolution Machine Tools product in the Beveling Machines collection.

Product Details

• Machine Capacity OD: 2”-14”
• Wall Thickness Capacity: Up to 2.5” (One Setup)
• Spindle RPMs Max: 400 RPM
• Facing Head Diameter: 20”
• Description
• Machining / Turning in a New Revolutionary Way!
• Workpiece is Fixed – Tool is Rotating (Spin the Tool Keep it Cool)
• If you do not have experienced personnel to run the machine, no problem! RMT application staff can program your parts for you. But really, it is easy to do.
• Advantages
• Much safer operation (material is not spinning)
• Typically, much more productive process
• Much easier to set up and run
• Unlimited length
• Very wide range of possibilities
• Few Processes:
• Turning
• Rounding
• Tapers
• Boring
• Chamfering
• Beveling
• Facing
• Texturing
• Grooving
• Weld Preparation
• Drilling
• Milling
• Centering
• Tapping
• Threading
• Thread Cutting
• Some Industries
• Pipe Spool Shops
• Mechanical Contractors
• Hydraulic Cylinder Production and Repair
• Oil and Gas Production and Repair
• Portable Machining Turning
• Rethreading
• Conveyor Roller
• Production
• Serial Production
• Automotive Parts Production
• Agriculture Production
• Pipe Mills
• Steel Pipe Cut Groove Time
• 1” Nominal Size Exact Width Tooling: 5 seconds 2 Plunges / Clean up: 14 seconds
• Exact Width Tooling: 5 seconds
• 2 Plunges / Clean up: 14 seconds
• 1.5” Nominal Size Exact Width Tooling: 5 seconds 2 Plunges / Clean up: 14 seconds
• 2” Nominal Size Exact Width Tooling: 5 seconds 2 Plunges / Clean up: 15 seconds
• 2 Plunges / Clean up: 15 seconds
• 3” Nominal Size Exact Width Tooling: 5 seconds 2 Plunges / Clean up: 15 seconds
• 4” Nominal Size Exact Width Tooling: 6 seconds 2 Plunges / Clean up: 18 seconds
• Exact Width Tooling: 6 seconds
• 2 Plunges / Clean up: 18 seconds
• 6” Nominal Size Exact Width Tooling: 8 seconds 2 Plunges / Clean up: 22 seconds
• Exact Width Tooling: 8 seconds
• 2 Plunges / Clean up: 22 seconds
• 8” Nominal Size Exact Width Tooling: 11 seconds 2 Plunges / Clean up: 26 seconds
• Exact Width Tooling: 11 seconds
• 2 Plunges / Clean up: 26 seconds
• 10” Nominal Size Exact Width Tooling: 12 seconds 2 Plunges / Clean up: 30 seconds
• Exact Width Tooling: 12 seconds
• 2 Plunges / Clean up: 30 seconds
• 12” Nominal Size Exact Width Tooling: 16 seconds 2 Plunges / Clean up: 34 seconds
• Exact Width Tooling: 16 seconds
• 2 Plunges / Clean up: 34 seconds
• 14” Nominal Size Exact Width Tooling: 19 seconds 2 Plunges / Clean up: 42 seconds
• Exact Width Tooling: 19 seconds
• 2 Plunges / Clean up: 42 seconds
• Note: Stainless Steep would be approx: 12% Slower
• Note: This is Machine Cycle Time – no load/unload time
• Specifications
• X Axis Stroke: 2.75”
• Z Axis Stroke: 16”
• Weight: 8,800 lbs.
• Main Spindle Servo Motor (Fanuc): 10 HP
• Machine Dims. (L x W x H): 98” x 75” x 71”
• Standard Bevels – Any: V Bevel (30° & 37.5°) Any
• Complex Bevels (U, J, & C dimensions): Yes – Fanuc CNC Series Oi-TF
• Any – Threading – Cut Groove – Facing: Yes – Fanuc CNC Series Oi-TF
• Options
• Follower/Tracer Attachment: If pipe is out of spec – round or oval, attachment will trace pipe to meet customer specifications

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: TGB14 CNC
• Shipping Method: Flatbed
• Weight: 9,000 lb
• Dimensions: 103 × 80 × 76 in
• Country of Origin: South Korea
• Warranty: 1 Year (Parts)
