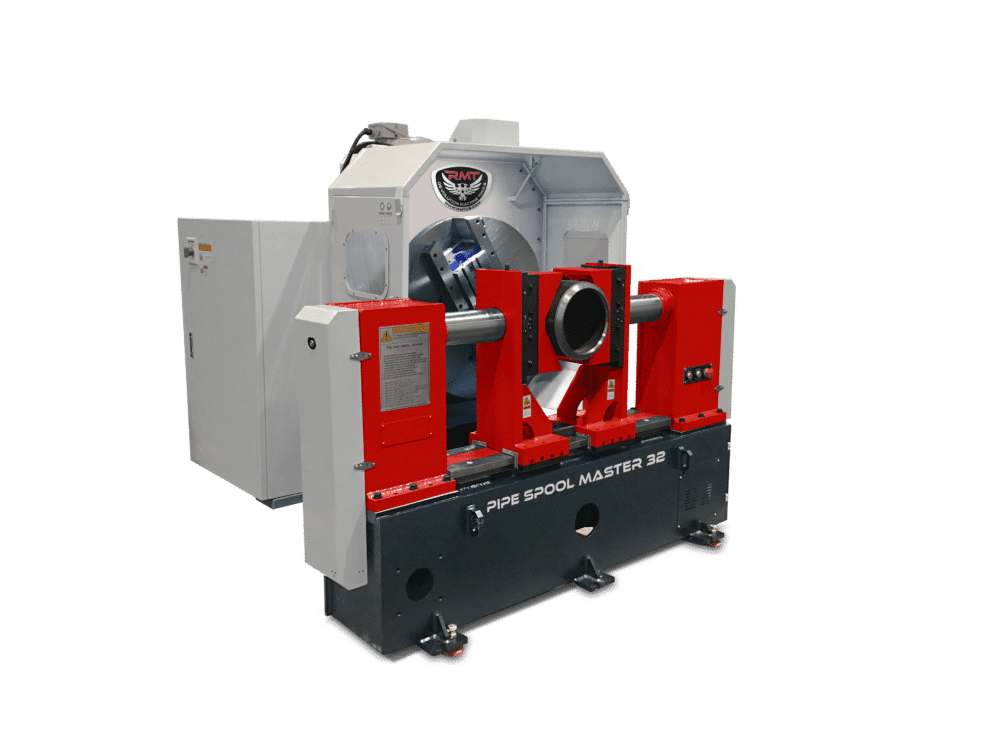

Revolution Machine Tools 10HP Pipe Spool Master 32 CNC Beveling Machine PSM32
$197,930.20Current price is: $197,930.20.
- Machine Capacity OD: 6”-32”
- Wall Thickness Capacity (one setup): 3.9”
- Spindle RPMs Max: 150 RPM
- X Axis Stroke: 5”
Revolution Machine Tools 10HP Pipe Spool Master 32 CNC Beveling Machine PSM32 is a Revolution Machine Tools product in the Beveling Machines collection.
Product Details
- Machine Capacity OD: 6”-32”
- Wall Thickness Capacity (one setup): 3.9”
- Spindle RPMs Max: 150 RPM
- X Axis Stroke: 5”
- Description

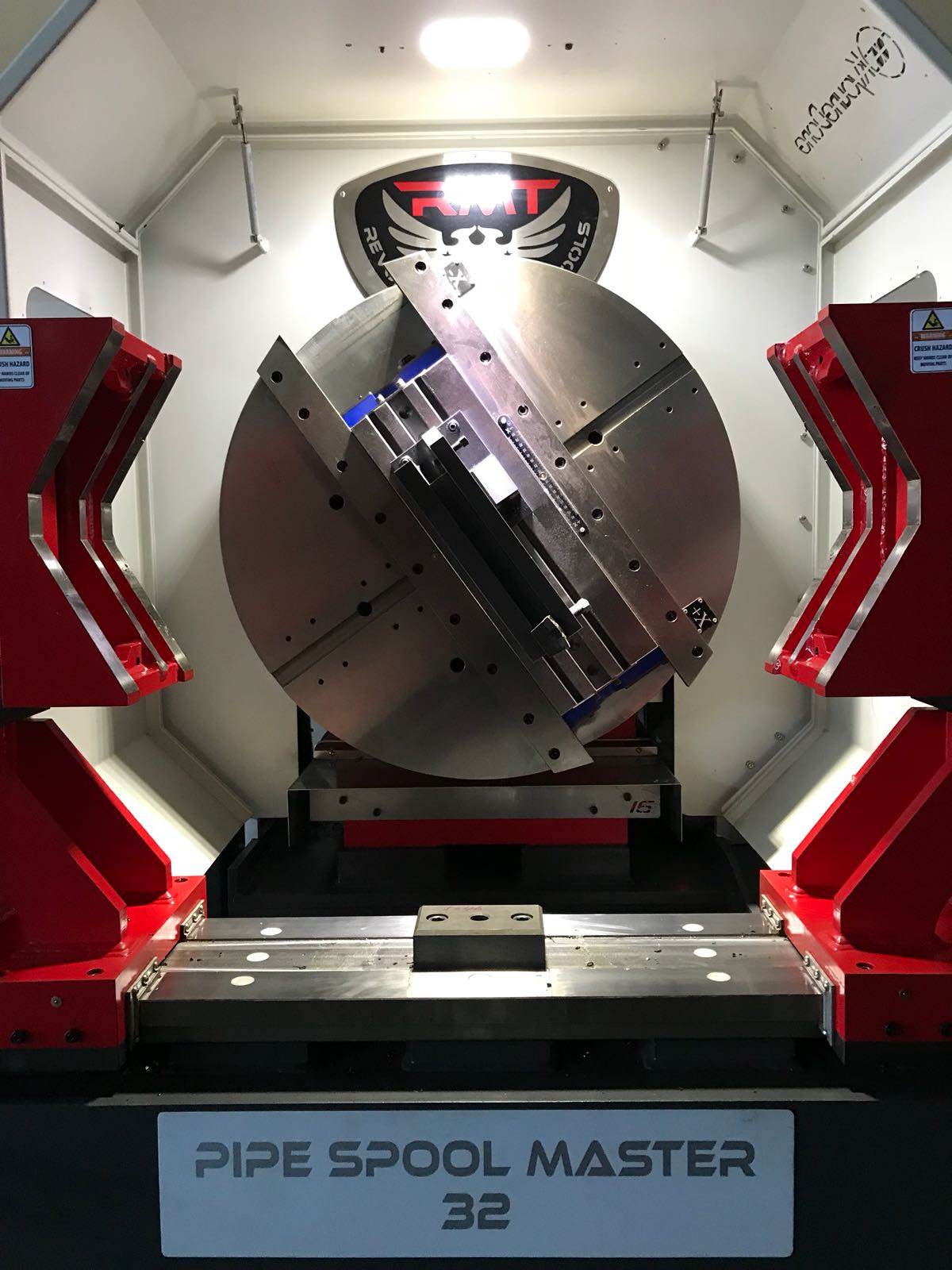

- The PIPE SPOOL MASTER 32 is the workhorse for any pipe fabrication shop. Designed to put complex or simple bevels on your pipes 6”-32” within minutes. A superior finish over traditional methods and one that your welders will love on wall thicknesses up to 3.9”. (In one setup – with multiple setups wall thickness is unlimited.) Your J, U, & V bevels including radiused bevels are now easily programmed and processed in minutes rather than hours. With the upgraded controller you can even thread the ends of your pipe or tubes. The PIPE SPOOL MASTER 32 is revolutionizing the pipe fab industry and will dramatically increase your shop’s safety, efficiency, and your company’s profitability.
- Specifications
- Z Axis Stroke: 7”
- Weight: 12,800 lbs.
- Main Motor: 10 HP
- Machine Dimensions (L x W x H): 93” x 92” x 77”
- Standard Bevels / Hard Tooling supplied with the machine: V Bevel (30° & 37.5°)
- Complex Bevels (U, J, & C dimensions): Standard
- Options
- Z Axis Stroke: Up to 24”
- Threading: Fanuc CNC
- Vice Jaws with capacity down to 1”
- Follower/Tracer Attachment: If pipe is out of spec – round or oval, attachment will trace pipe to meet customer specifications.
Specifications
- Manufacturer: Revolution Machine Tools
- SKU: PSM32
- Shipping Method: LTL Freight
- Weight: 13,000 lb
- Dimensions: 98 × 97 × 82 in
- Country of Origin: South Korea
- Warranty: 1 Year (Parts)
| Weight | 13000.0 lbs |
|---|---|
| Dimensions | 98.0 × 97.0 × 82.0 in |
| Brand | Revolution Machine Tools |
