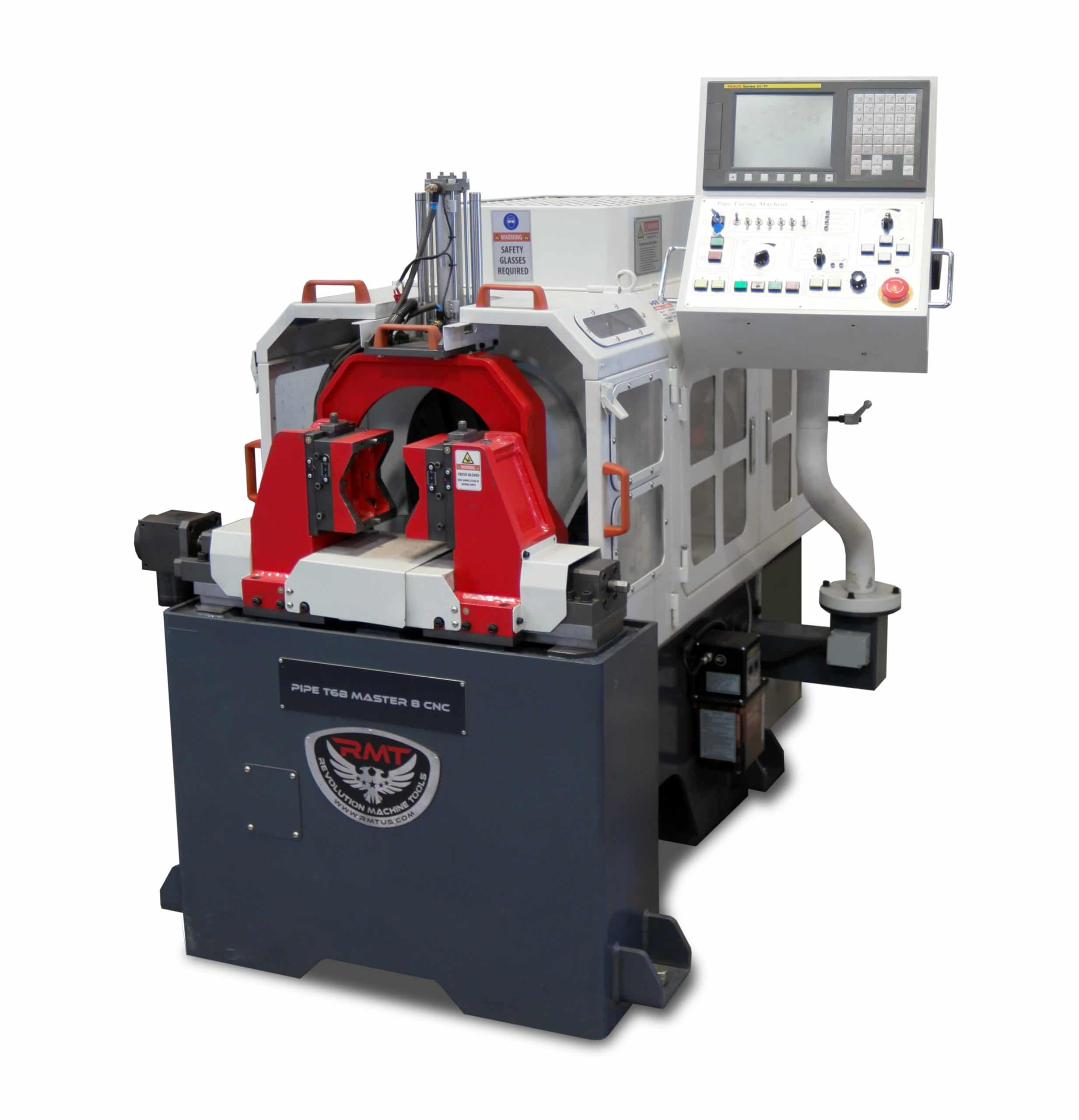

Revolution Machine Tools 5.5HP Pipe Spool Master CNC Beveling Machine TGB08
$99,747.50Current price is: $99,747.50.
- Machine Capacity OD: 1”-8”
- Facing Head Diameter: 10”
- Spindle RPMs Max: 100-900 RPM
- X Axis Stroke: 1.57”
Revolution Machine Tools 5.5HP Pipe Spool Master CNC Beveling Machine TGB08 is a Revolution Machine Tools product in the Beveling Machines collection.
Product Details
- Machine Capacity OD: 1”-8”
- Facing Head Diameter: 10”
- Spindle RPMs Max: 100-900 RPM
- X Axis Stroke: 1.57”
- Description
- The Pipe Spool Master TGB 8 CNC has optimum production efficiency, wide range 1″ – 8″ capacity, precise pipe & bolt threading, FANUC CNC, high speed cut groove, beveling, turning and tapering, and custom profiles.
- Specifications
- Main Spindle Drive: 5.5 HP
- Z Axis Stroke: 3.75”
- Weight: 3,850 lbs.
- Machine Dimensions (L x W x H): 61” x 40” x 55”
- Complex Bevels (U, J, & C – Any): Yes – Fanuc CNC Series Oi-TF
- Threading – Cut Groove: Yes – Fanuc CNC Series Oi-TF
- Options
- Follower/Tracer Attachment: If pipe is out of spec – round or oval, attachment will trace pipe to meet customer specifications.
Specifications
- Manufacturer: Revolution Machine Tools
- SKU: TGB08
- Shipping Method: LTL Freight
- Weight: 4,050 lb
- Dimensions: 66 × 45 × 60 in
- Country of Origin: South Korea
- Warranty: 1 Year (Parts)
| Weight | 4050.0 lbs |
|---|---|
| Dimensions | 66.0 × 45.0 × 60.0 in |
| Brand | Revolution Machine Tools |
