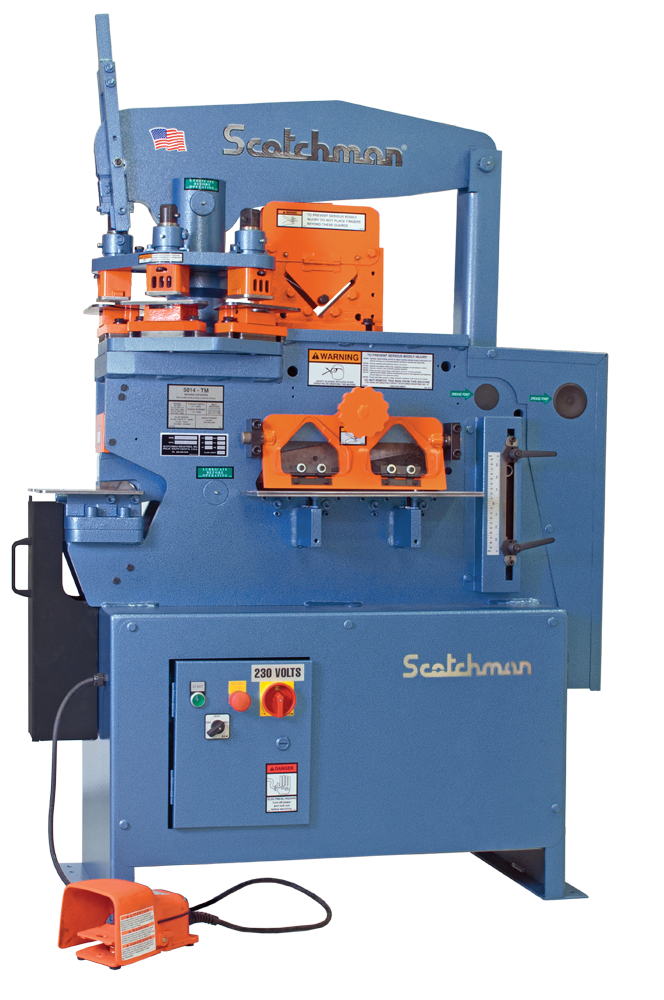

Scotchman 5014-ET 230V Three Phase 50 Ton Hydraulic Ironworker 348024

Scotchman 5014-ET 230V Three Phase 50 Ton Hydraulic Ironworker 348024 is a Scotchman product in the Ironworkers collection.

Product Details

• Punching Capacity: 50 ton 1-1/4" in 1/2", 13/16" in 3/4"
• Hydraulics: 2,350 psi
• Motor: 3 hp, 230 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Single Operator, 7 Stations
• 50 Ton punch station with 3-station revolving turret
• Keyed punch ram for safety
• 2" Die holder (one for each punch station – qty 3)
• Punch nut with wrench & stripper (one for each punch station – qty 3)
• One round punch & die: max. diameter 1"
• Adjustable electric stroke control with scale
• Electric remote foot pedal
• Angle shear
• Flat bar shear with 4-way reversible blade
• Rectangle notcher
• Tool table work area
• Slug receptacle
• Electrical box supplied with emergency palm button & lock-out tag-out accommodations
• All guards necessary to comply with ANSI B11.5 safety standards
• Forklift accommodations
• Warranty: Three years on parts
• Made in USA
• Specifications
• Special Tooling: 2-1/4" Max. Dia.
• Throat Depth: 4"
• Flat Bar Shear: 14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10"
• 14" Length
• 3/4" x 4"
• 1/2" x 8"
• 3/8" x 10"
• Saber Blade ( optional ): 1/2" x 10" 3/8" x 12"
• 1/2" x 10"
• 3/8" x 12"
• Angle Shear 90 degree: 4" x 4" x 3/8"
• Angle Shear 45 degree: 2" x 2" x 1/4"
• Brake 8": 25 ton
• Brake 12": 25 ton
• Open End Brake: Max. 1/4" x 3" [Flat or Angle Iron]
• Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
• Rectangle Notcher: 2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"
• 2-1/2" x 3" x 5/16"
• 2-1/2" x 2-3/4" x 3/8"
• 90 degree V-Notcher: 6" x 6" x 1/8" 3" x 3" x 1/4"
• 6" x 6" x 1/8"
• 3" x 3" x 1/4"
• Unistrut Shear: Samples Required
• Rod Shear Round (max.): 5 Cavity – 1/4" to 1"
• Rod Shear Square (max.): 1 Cavity – 1/4" to 3/4"
• Square Tube Shear: 1/2" to 1" 12 gauge
• Picket Tool: 1/2", 3/4" & 1" 16 gauge
• Weld Coupon Bender (max.): 2" wide x 3/8"
• Strokes per Minute in Light Material: 34 spm [Punch Station]
• Strokes per Minute in Heavy Material: 14 spm [Punch Station]
• Motor: 3 hp, 230 Volt, Three Phase
• Dimensions: L: 48-1/4" x W: 23-1/2" x H: 70-1/4"
• Shipping Weight (may vary): 1,640 lbs
• Optional Tooling
• Snap Ring Removal Tool
• Pipe Notcher
• 8” Brake
• Picket Tool
• Unistrut Shear
• Jog Control
• LED Lights
• Weld Coupon Bender
• Tool Table Extension With Punch & Die Storage Drawer
• Custom Built Tool examples
• 24" x 5' Conveyor with Angle Iron Support
• Brake Table with Scale and Squaring Arm
• Laser Light – Bar Shear
• Shear Table with Miter Fence
• 48" Back Gauge
• Punch Gauging Table with Fence & Scale
• Square Tube Shear
• Rod Shear
• 90° V-Notcher
• Angle Shear Miter Guide
• Open End Brake
• 12" Brake
• 6" Brake
• Economy Punch & Die Package
• Deluxe Punch & Die Package
• Brake Length Gauge with Scale

Specifications

• Manufacturer: Scotchman
• SKU: 348024
• Shipping Method: LTL Freight
• Weight: 1,635 lb
• Dimensions: 48 × 48 × 70 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
