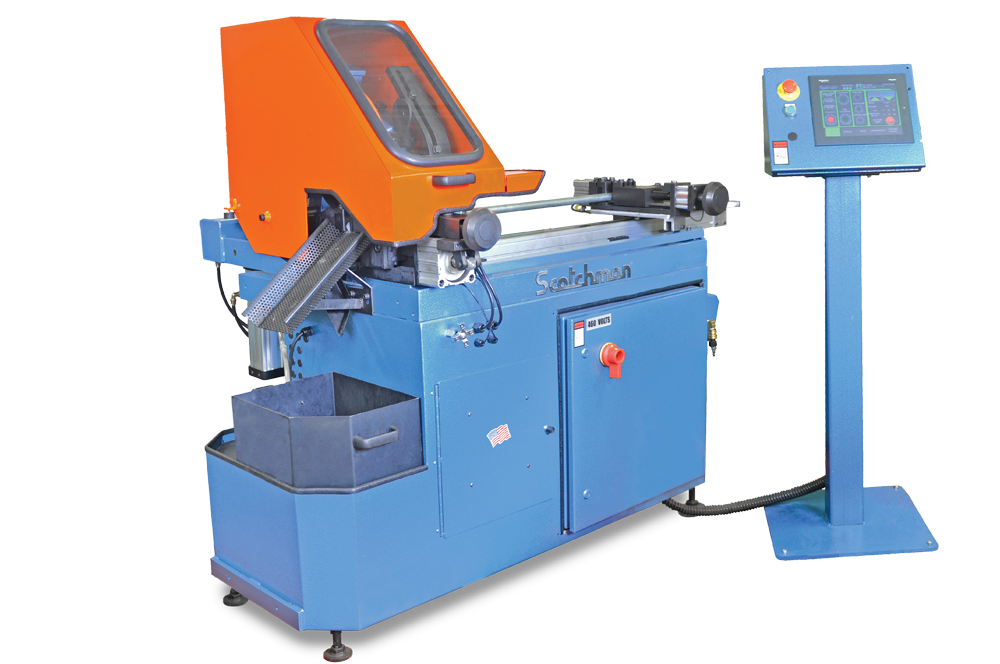

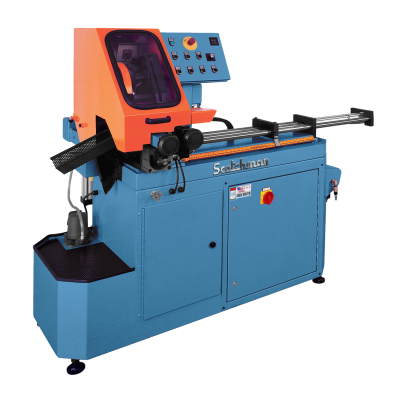

Scotchman CPO 315 HFA CNC 12.5″ Non-Ferrous Hitch Feed Automatic 230V Circular Cold Saw 047020
$37,447.15Current price is: $37,447.15.
- Cutting Speeds: 5 hp 3,000 RPM
- Maximum Saw Blade Diameter: 315 mm
- Motor: 5 hp 230 Volt, 3 Phase
- Made in the USA with a 2-year parts warranty
Scotchman CPO 315 HFA CNC 12.5″ Non-Ferrous Hitch Feed Automatic 230V Circular Cold Saw 047020 is a Scotchman product in the Cold Saws collection.
Product Details
- Cutting Speeds: 5 hp 3,000 RPM
- Maximum Saw Blade Diameter: 315 mm
- Motor: 5 hp 230 Volt, 3 Phase
- Made in the USA with a 2-year parts warranty
- Features
- Fully automatic cycle
- Touch screen controls
- Precision CNC controlled
- Interlocking safety hood
- Emergency stop button
- Clamping both sides of blade–highest quality, burr-free cuts
- Mist coolant lubrication system

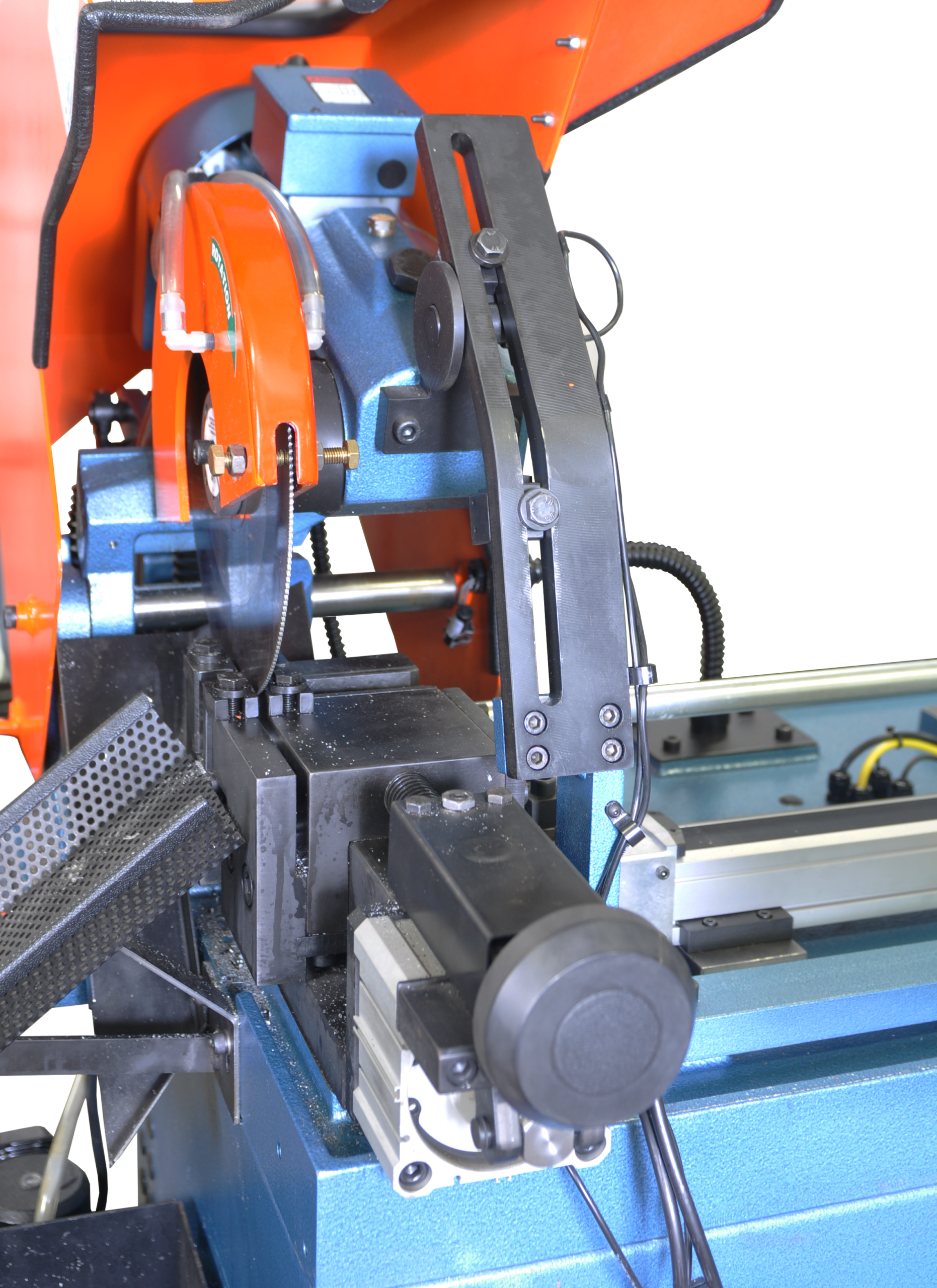

- Adjustable stroke control on the saw head
- Adjustable down feed control on the saw head for feed rate
- Adjustable indexing feed speeds
- Program up to four separate cut lengths in each job
- 100 Program job storage
- 30" Single shuttle length (unlimited shuttles)
- Piece counter
- One saw blade
- One gallon coolant
- Complies with ANSI B11.10 safety standards
- Warranty: Two years on parts
- Made in USA
- Specifications
- Maximum Cutting Capacities (NF) (Non-Ferrous & PVC ): Solid (NF) Round 90°: Up to 3-1/2" Square 90°: Up to 3-1/8" x 3-1/8"
- Solid (NF) Round 90°: Up to 3-1/2" Square 90°: Up to 3-1/8" x 3-1/8"
- Round 90°: Up to 3-1/2"
- Square 90°: Up to 3-1/8" x 3-1/8"
- Length Tolerance: ± 0.006" per index
- Squareness Tolerance: ± 0.002" per dia. inch
- Minimum Cut Length: 1/8"
- Maximum Cut Length: Unlimited
- Motor: 5 hp 230 Volt, Three Phase
- Air Pressure: 90 psi
- Arbor Bore Size: 40 mm
- Pin Spacing: 4/12/64
- Dimensions (L x W x H): 100" x 44" x 64"
- Shipping Weight (may vary): 1,800 lbs.
Specifications
- Manufacturer: Scotchman
- SKU: 047020
- Shipping Method: LTL Freight
- Weight: 1,800 lb
- Dimensions: 72 × 44 × 64 in
- Country of Origin: United States of America
- Warranty: 2 Years (Parts)
| Weight | 1800.0 lbs |
|---|---|
| Dimensions | 72.0 × 44.0 × 64.0 in |
| Brand | Scotchman |
