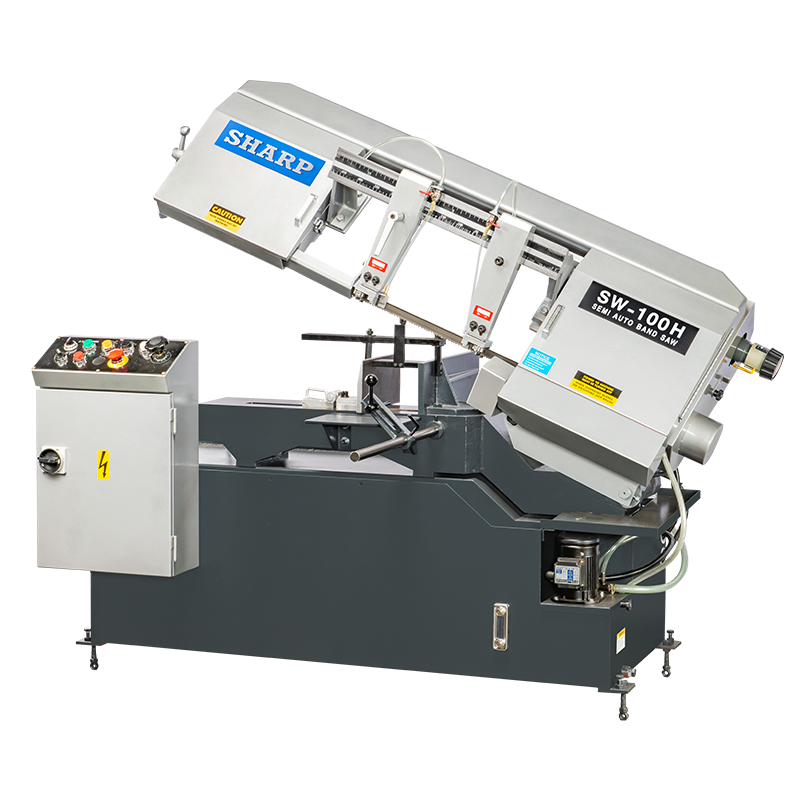

Sharp Industries 2 HP Horizontal Semi-Automatic Band Saw SW-100H
$6,551.60Current price is: $6,551.60.
- Cutting Capacity: Round: 10”, Square: 9”
- 4 step blade speeds with worm gear speed reducer
- Adjustable return height of saw arm
- Motor: 2 HP
Sharp Industries 2 HP Horizontal Semi-Automatic Band Saw SW-100H is a Sharp Industries product in the Band Saws collection.
Product Details
- Cutting Capacity: Round: 10”, Square: 9”
- 4 step blade speeds with worm gear speed reducer
- Adjustable return height of saw arm
- Motor: 2 HP
- Description
- This is a semi-automatic saw with manual vise clamping and mechanical length stop.
- Standard Features
- 10” round, 9” square, 9” x 11.8” rectangular cutting capacity
- 2 HP motor, wt.1,200 lbs
- Coolant system
- Auto saw arm return at end of cut
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
- Adjustable mechanical material stop
- Bi-Metal saw blade
- Tools leveling pads and additional wire brush
- Specifications
- Round: 10”
- Square: 9”
- Rectangle (H x W): 9” x 11.8”
- Speed: 60HZ: 75, 121, 190, 305 fpm 50HZ: 62, 102, 157, 256 fpm
- 60HZ: 75, 121, 190, 305 fpm
- 50HZ: 62, 102, 157, 256 fpm
- Size: 1” x .035” x 132”
- Saw Blade Motor Output: 2 HP
- Hydraulic Motor Output: 0.25 HP
- Coolant Motor Output: 0.125 HP
- Vice Control: Hydraulic
- Workable Height: 25”
- Gross Weight: 1276 lbs
- Floor Space (L x W x H): 73” x 35.4” x 41”
- Available Options & Accessories
- Infinite variable speed device
- 2M roller table
- 1M roller table
Specifications
- Manufacturer: Sharp Industries
- SKU: SW-100H
- Shipping Method: LTL Freight
- Weight: 1,345 lb
- Dimensions: 72 × 45 × 45 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 1345.0 lbs |
|---|---|
| Dimensions | 72.0 × 45.0 × 45.0 in |
| Brand | Sharp Industries |
