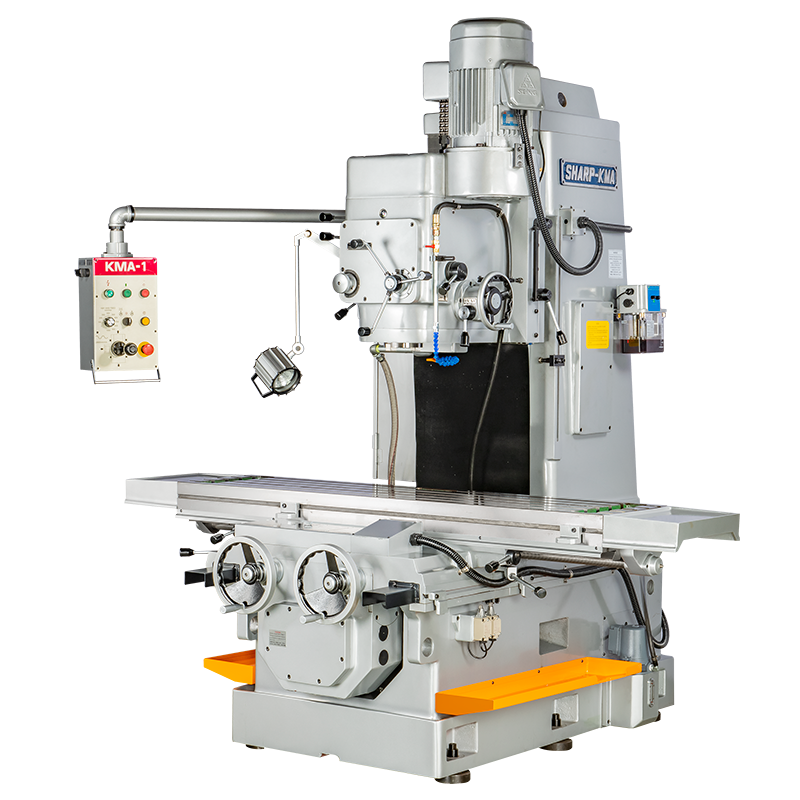

Sharp Industries 220V 67” Heavy Duty Vertical Bed Type Mill KMA-1

Sharp Industries 220V 67” Heavy Duty Vertical Bed Type Mill KMA-1 is a Sharp Industries product in the Milling Machines collection.

Product Details

• Table Size: 14.93” x 67”
• X & Y Axis Travel: 39.37” x 14.93”
• Spindle Taper: NST #50
• Spindle Motor: 220V, 5HP
• Description
• Bed type vertical mills are ideal for milling large work pieces or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
• Standard Features
• 15” x 67” table, 15” x 39” travel
• Vertical head travel 20”, fixed quill
• NST #50 taper spindle, 10 HP motor
• Hardened and ground box ways
• Fully ribbed castings on column, table and saddle to make it a rigid structure
• Double nut backlash eliminator
• Eye-level lever control for vertical head rapid traverse
• Honeycombed ribbing castings
• Hardened & ground boxways throughout
• Automatic table feeds with rapid traverse
• Climb milling backlash eliminator
• Coolant system
• Auto lubrication system
• Draw-in bolt (1 pc)
• Tool box
• Specifications
• T-slots (No., Size, Pitch): 5, 0.75”, 2.5”
• Table Travel: X Longitudinal: 39.37”
• Table travel: Y Cross: 14.93”
• Vertical Head Travel: 19.68”
• Spindle Center to Column: 14.93”
• Spindle Nose to Table: 3.93”-23.62”
• Longitudinal Feeds (Variable): 1.12” – 39.37”/Min
• Longitudinal Rapids: 110”/Min
• Cross Feeds (Variable): 1.12” – 39.37”/Min
• Cross Rapids: 110”/Min
• Spindle Speeds: 45-1500 rpm
• Vertical Head Feeds: 0.002” – 0.008”/Rev
• Vertical Spindle: 5 HP
• Table Feed and Rapid: 1.74 HP
• Coolant System: 0.125 HP
• Floor Area (W x D x H): 10.5’ x 6.56’ x 7.90’
• Approximate Weight: 8,800 lbs
• Power Consumption: 220V, 30 amp
• Available Options & Accessories
• 440V available with the purchase of an additional transformer
• Power drawbar w/ foot pedal control
• 6 in. “KURT” vise with swivel base D688
• Halogen work light
• 30 in. travel in z axes in lieu of 20 in.

Specifications

• Manufacturer: Sharp Industries
• SKU: KMA-1 (220V)
• Shipping Method: LTL Freight
• Weight: 9,900 lb
• Dimensions: 68 × 68 × 102 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
