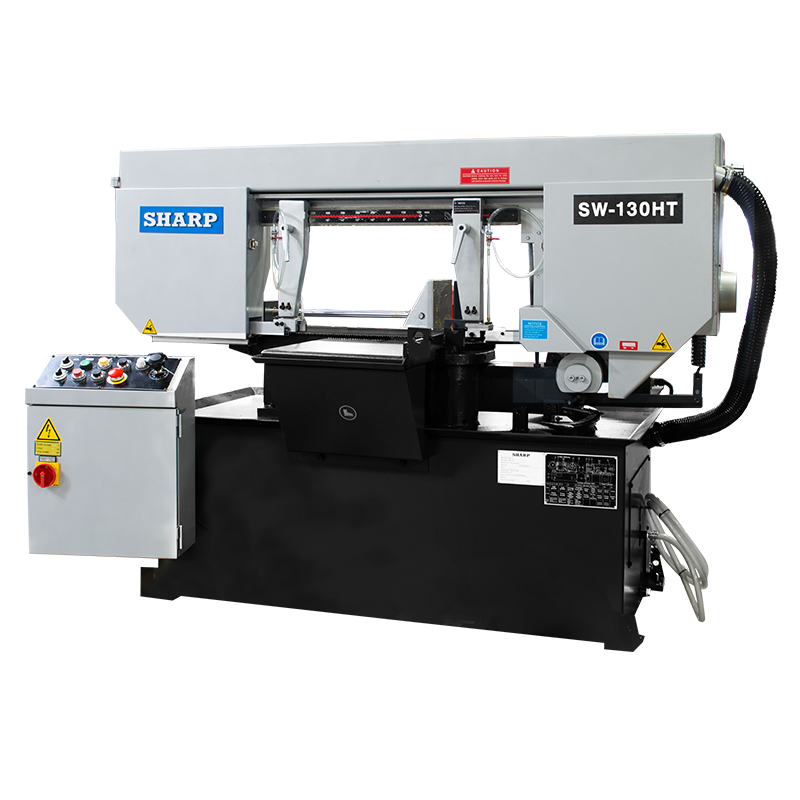

Sharp Industries 3 HP Horizontal Semi-Automatic Miter Band Saw SW-130HT
$15,604.72Current price is: $15,604.72.
- Cutting Capacity at 90°: Round: 13”, Square: 11”
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Full stroke hydraulic vise clamp
- Motor: 3 HP
Sharp Industries 3 HP Horizontal Semi-Automatic Miter Band Saw SW-130HT is a Sharp Industries product in the Band Saws collection.
Product Details
- Cutting Capacity at 90°: Round: 13”, Square: 11”
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Full stroke hydraulic vise clamp
- Motor: 3 HP
- Description
- This is a semi-automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
- Standard Features
- 13” round, 11” x 11” square, 10.6” x 18” rectangular cutting capacity (90°)
- 11.4” round, 10.5” x 10.5” square, 8.7” x 8.7” rectangular cutting capacity (45°)
- 8.7” round, 8.7” x 8.7” square, 8.7” x 8.8” rectangular cutting capacity (30°)
- 3 HP motor, wt.1,800 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
- Swivel turn table
- Built in material stop
- Bi-metal saw blade
- Tools leveling pads and additional wire brush
- Specifications
- Round: 90°: 13” 45°: 11.4” 30°: 8.7”
- 90°: 13”
- 45°: 11.4”
- 30°: 8.7”
- Square: 90°: 11” 45°: 10.5” 30°: 8.7”
- 90°: 11”
- 45°: 10.5”
- Rectangle (H x W): 90°: 10.6” x 18” or 19.6” x 5.5” 45°: 8.7” x 8.7” 30°: 8.7” x 8.8”
- 90°: 10.6” x 18” or 19.6” x 5.5”
- 45°: 8.7” x 8.7”
- 30°: 8.7” x 8.8”
- Speed: 98 ~ 328 fpm
- Size: 1” x .035” x 163”
- Tension: Manual
- Saw Blade Motor Output: 3 HP
- Hydraulic Motor Output: 1/2 HP
- Coolant Motor Output: 1/8 HP
- Vise Control: Hydraulic
- Table Height: 32.3”
- Net Weight: 1,408 lbs
- Gross Weight: 1,848 lbs
- Floor Space (L x W x H): 87.44” x 43.38” x 57.8”
- Available Options & Accessories
- Infinite variable speed device
- 2M roller table
- 1M roller table
Specifications
- Manufacturer: Sharp Industries
- SKU: SW-130HT
- Shipping Method: LTL Freight
- Weight: 2,500 lb
- Dimensions: 89 × 48 × 70 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 2500.0 lbs |
|---|---|
| Dimensions | 89.0 × 48.0 × 70.0 in |
| Brand | Sharp Industries |
