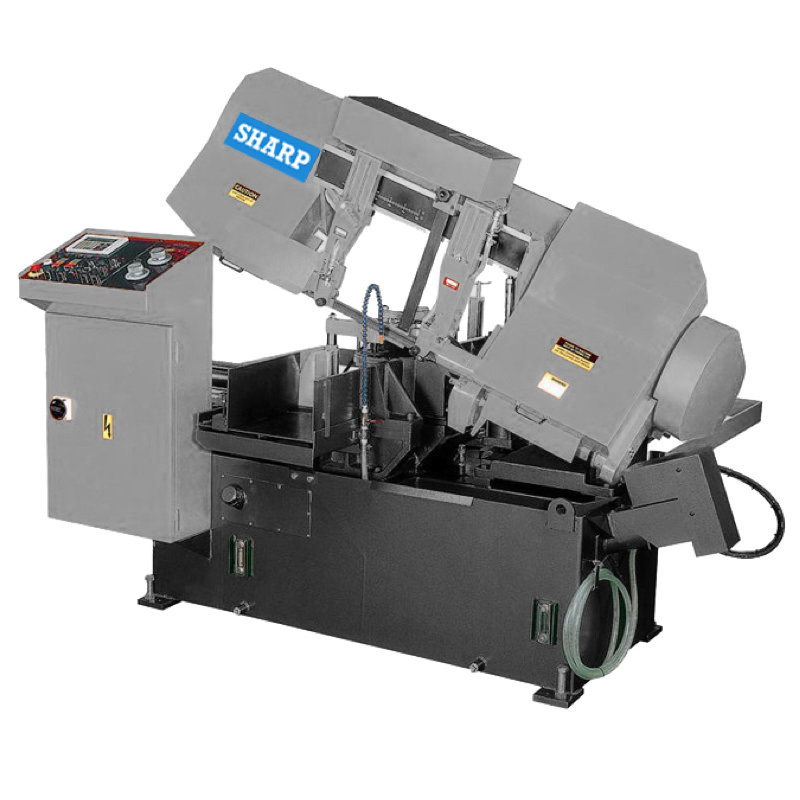

Sharp Industries 3 HP NC Control Horizontal Band Saw with 10” Cutting Capacity SW-100NC
$31,872.89Current price is: $31,872.89.
- Cutting Capacity: Round: 10”, Square: 10”
- Feed Mode: Hydraulic, NC Automatic
- Speed: 66-328 fpm
- Motor: 3 HP
Sharp Industries 3 HP NC Control Horizontal Band Saw with 10” Cutting Capacity SW-100NC is a Sharp Industries product in the Band Saws collection.
Product Details
- Cutting Capacity: Round: 10”, Square: 10”
- Feed Mode: Hydraulic, NC Automatic
- Speed: 66-328 fpm
- Motor: 3 HP
- Description
- This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
- Standard Features
- 10” round, 10” square, 10” x 11” rectangular cutting capacity, 3 HP
- NC operating panel with touch screen
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
- "Programmable touch screen control of input quantity, material length, feed vise position, auto kerf loss compensation, display blade speed, feed pressure, work height, feed rate selection, auto shut down"
- 10", 12", 12.6", 16.5", 18.5", 31.5" square, round cutting capacity
- Programmable 100 jobs
- Error feedback function
- Other features as automatic band saws
- Blade "clip" change device
- Bi-metal saw blade
- Additional fence to support bundled cut off stock
- Built-in work light
- Coolant system
- Tool box and tools
- Specifications
- Round: 10”
- Square: 10”
- Rectangle: 10” x 11”
- Speed: 6-328 fpm
- Size: 1 1/4” x .042” x 138”
- Tension: Hydraulic
- Guides: Interchangeable Tungsten Carbide
- Cleaning: Steel Wire Brush with Flexible Drive Shaft Driven by Main Motor
- Saw Blade Motor Output: 3 HP
- Hydraulic Motor Output: 1 HP
- Coolant Motor Output: 0.125 HP
- Hydraulic Oil Tank Capacity: 5.3 gal.
- Collant Tank Capacity: 11.9 gal.
- Feed Length: Single Stoke: 15.9” Multi Stoke: Max. 999” Rest Piece (Automatic): 2”
- Single Stoke: 15.9”
- Multi Stoke: Max. 999”
- Rest Piece (Automatic): 2”
- Vise Control: Hydraulic with Full Stroke Cylinder
- Net Weight: 3,300 lbs
- Gross Weight: 3,750 lbs
- Floor Space (L x W x H): 7.45’ x 6.66’ x 5.25’
- Available Options & Accessories
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Double retracting vise jaws
- Hydraulic tool clamp for bundle cut
- Laser beam light
Specifications
- Manufacturer: Sharp Industries
- SKU: SW-100NC
- Shipping Method: LTL Freight
- Weight: 3,750 lb
- Dimensions: 57 × 30 × 48 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 3750.0 lbs |
|---|---|
| Dimensions | 57.0 × 30.0 × 48.0 in |
| Brand | Sharp Industries |
