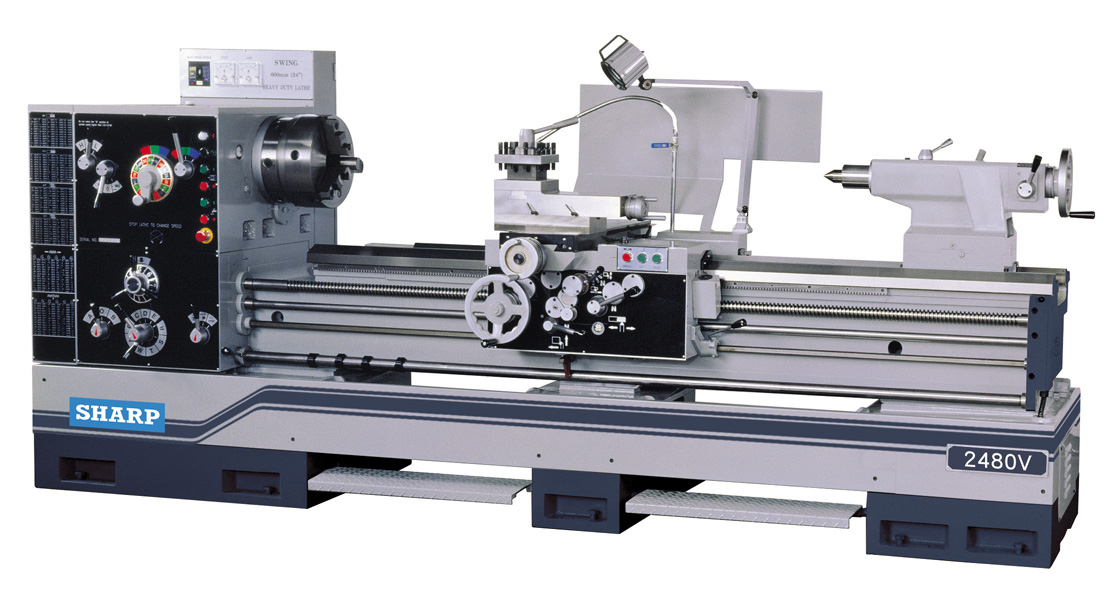

Sharp Industries 440V 30” x 80” V Series Heavy Duty Precision Lathes 3080V
$75,714.28Current price is: $75,714.28.
- Swing Over Bed: 30”
- Distance Between Centers: 80”
- Spindle Speed: 18 Speeds (10-1,200 RPM)
- Motor: 440V , 15 HP
Sharp Industries 440V 30” x 80” V Series Heavy Duty Precision Lathes 3080V is a Sharp Industries product in the Lathes collection.
Product Details
- Swing Over Bed: 30”
- Distance Between Centers: 80”
- Spindle Speed: 18 Speeds (10-1,200 RPM)
- Motor: 440V , 15 HP
- Description
- The model heavy duty lathe has 4.125” spindle bore, D1-11 Camlock spindle head,19” wide bed and wide range of threading capacity. Coarse thread reaches 1/4” TPI.
- Standard Features
- D1-11 camlock spindle
- Clutch type geared head
- 4.125″ spindle bore
- 15 hp motor
- 18 speeds (10-1,200 rpm)
- Wide thread range (1/4 tpi – 84 tpi)
- 19″ wide bed
- Multiple leads thread indicator
- Steady rest with roller jaws (8-3/4" – 13" capacity)
- Face plate 20"
- Coolant system
- Longitudinal carriage stop
- Halogen work light
- Tailstock with 2 speeds on quill
- Specifications
- Swing Over Cross Slide: 14.75”
- Swing Over Gap: 33”
- Spindle Speed: 10 – 1,200 RPM
- No. of Spindle Speeds: 18
- Spindle Nose: D1-11 camlock
- Spindle Bore: 4.125”
- Threads, Number: 0.25-84”, 60
- Modular Threads, Number: 0.05-28 MP, 55 threads
- Diametral Pitch Threads, Number: 1-240 DP, 55 threads
- Longitudinal Feeds: 0.0015-0.2”/Rev
- Cross Feeds: 0.0006-0.16”/Rev
- Leadscrew Pitch, Diameter: 1.5” / 2 tpi
- Cross Slide Travel: 14.75”
- Compound Travel: 9”
- Compound Width: 30.25”
- Bed Width: 19”
- Quill Diameter: 3.12”
- Quill Travel: 7.5”
- Quill Center Taper: MT #5
- Spindle Motor: 15 HP
- Voltage: 440V
- Phase: 3 Ph
- Power Consumption ( 440V ): 15 KVA / 20 amps
- Available Options & Accessories
- Taper attachment
- Roller jaw set (3 pcs) for steady rest
- 3-jaw chuck 12″
- 4-jaw chuck 16”
- Follow rest
- Quick change tool holder
- Live center – (dual bearing) MT #5
- Live center – MT #5
- Micrometer carriage stop
- Steady rest, 8-3/4′ – 13″, 11″ – 17″ ,14″ – 21″
- 20 HP motor in lieu of 15 HP motor
- Rear splash guard (80″ / 120″ / 160″ length) • CSA or UL electrical parts and wiring
- Chuck guard with limit switch
- Tool post guard
- Spindle rear end cover
- Lead screw cover
Specifications
- Manufacturer: Sharp Industries
- SKU: 3080V (440V)
- Shipping Method: Flatbed
- Weight: 9,020 lb
- Dimensions: 148 × 56 × 76 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 9020.0 lbs |
|---|---|
| Dimensions | 148.0 × 56.0 × 76.0 in |
| Brand | Sharp Industries |
