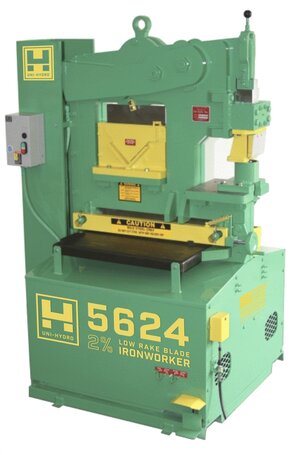

Uni-Hydro 5624 220V Three Phase 56 Ton Hydraulic Ironworker 156243

Uni-Hydro 5624 220V Three Phase 56 Ton Hydraulic Ironworker 156243 is a Uni-Hydro product in the Ironworkers collection.

Product Details

• Full Up & Down Stroke Control
• Bar Shear set at 2 degrees of rake
• Motor: 5 HP, 220 Volt, 3 Phase
• Made In The USA
• Description
• In building the 5624 Uni-Hydro Chuck Dvorak took up his own challenge to design a 1/2” x 24” flat bar shear that could achieve virtually perfect shearing, with a blade rake as close to zero degrees as possible. The result was the Uni-Hydro Model 5624, featuring a 2 degree low rake blade and the highest quality shear for any hydraulic ironworker that has ever been produced. No other hydraulic ironworker can match the 5624’s capability of shearing 1/2” x 24” on 2 degrees of rake, with such minimal distortion over 24”. This machine will do great in small fab, farm and sheet metal shops.
• Uni-hydro machines are made in the USA, not assembled from imported parts. All their machines are built from the ground up at their factory in Cosmos, MN.
• Features
• Manual Punch Aligner
• 9″ Open Throat Punch with 56-ton capability
• 24″ Bar Shear with Four Sided Blades, with 2 degrees of rake
• Bar Shear Hold-Down can be Fixed or Adjustable
• Built for Forklift Handling
• Magnetic Starter for Safety & Reliability
• Specifications
• Model: 5624
• Tonnage: 56
• Throat Depth: 9"
• Punch: 1-3/8" hole in 1/2" mild steel 2-1/4" hole in 5/16" mild steel
• 1-3/8" hole in 1/2" mild steel
• 2-1/4" hole in 5/16" mild steel
• Bar Shear: 1/2" x 24"
• 1/2" x 24"
• Angle Shear 90°: Slug Type – 6" x 6" x 3/8" Sever Cut – 4" x 4" x 3/8"
• Slug Type – 6" x 6" x 3/8"
• Sever Cut – 4" x 4" x 3/8"
• Miter Angle 45°: Bar Shear – 4" x 4" x 3/8" Slug Type – 4" x 4" x 3/8"
• Bar Shear – 4" x 4" x 3/8"
• Slug Type – 4" x 4" x 3/8"
• Rod Shear: Round (Max) – 1-1/4" Square (Max) – 1-1/4”
• Round (Max) – 1-1/4"
• Square (Max) – 1-1/4”
• V Coper Notcher 90°: For 4" x 4" x 3/8" Angle Iron
• Square Notcher: 3" x 3" x 3/8" – Punch/Power Cavity
• Pipe Notcher (Sch 40 or 80): 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2"
• Brake: 6", 9”, 14”, 18”, 24” capacity
• Channel Shear: 2" & 3" combined or 4" standard
• Strokes Per Min: Light Material – 50 Max Capacity – 9
• Light Material – 50
• Max Capacity – 9
• Hydraulics: 2,000 psi
• Oil Capacity: 16 gallons
• Motor: 5 HP, 220 Volt, Three Phase
• Dimensions (L x W x H): 46" x 37" x 70"
• Bar Shear Work Height: 29"
• Punch Table Top Height: 39-1/4"
• Cavity Table Top Height: 41"
• Weight (May Vary): 2,700 lbs
• Optional Tooling & Accessories
• V-Coper Notcher
• Square Notcher
• Pipe Notcher
• Slug Type Angle Shear
• Universal Sever Housing
• Sever Plates
• Sever Housing Back
• 2-Part Brake
• Spring Return Brake
• Punch Table + Adjusting Jig
• Bar Shear Table
• Steel Bin Catcher
• Deluxe Back Gauge
• Bar Shear Stop
• Grease Bank
• Remote Foot Switch
• Oversize Die Stands
• Punch Nut Wrenches
• Punch Rack
• Oversize Die Stand
• Offset Die Stands
• Offset L100 Die Stand
• Oversize Punches
• Special Die Stand

Specifications

• Manufacturer: Uni-Hydro
• SKU: 156243
• Shipping Method: LTL Freight
• Weight: 2,700 lb
• Dimensions: 46 × 37 × 70 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
