Uni-Hydro 7.5HP 220V Three Phase 0.25” x 74” Hydraulic Plate Shear 207430
$25,725.00Current price is: $25,725.00.
- Strokes Per Minute (max): 14
- Blade Size: 3/4” x 4” x 74”
- Blade Cutting Edges: 4
- Blade Rake: 1-3/16” over 74”
Uni-Hydro 7.5HP 220V Three Phase 0.25” x 74” Hydraulic Plate Shear 207430 is a Uni-Hydro product in the Shears collection.
Product Details
- Strokes Per Minute (max): 14
- Blade Size: 3/4” x 4” x 74”
- Blade Cutting Edges: 4
- Blade Rake: 1-3/16” over 74”
- Description
- The Uni-Hydro Model 2574 Plate Shear is a compact powerhouse that provides Uni-Hydro’s customers with decades of trouble free metal cutting operation. This plate shear is engineered to deliver increasing power throughout the cut with a patented system that utilizes a cylinder that is center mounted on the blade and uses pivot arms to transfer energy to three pressure points. The result is up to a 115% performance gain as the cut finishes. No other competitors shear matches this performance!
- Another hallmark of these plate shears of the simplicity of adjustments, a fixed low rake design, quiet hydraulic operation, and simple measuring systems for operator productivity.
- Uni-Hydro plate shears utilize a fixed low rake blade in combination with the Uni-Hydro patented mechanical linkage system. This unique combination provides their plate shears a gain in power performance.
- Features
- Single cylinder design
- Cylinder is center mounted on the blade and uses pivot arms to transfer energy to three pressure points
- Independent hydraulic hold-down

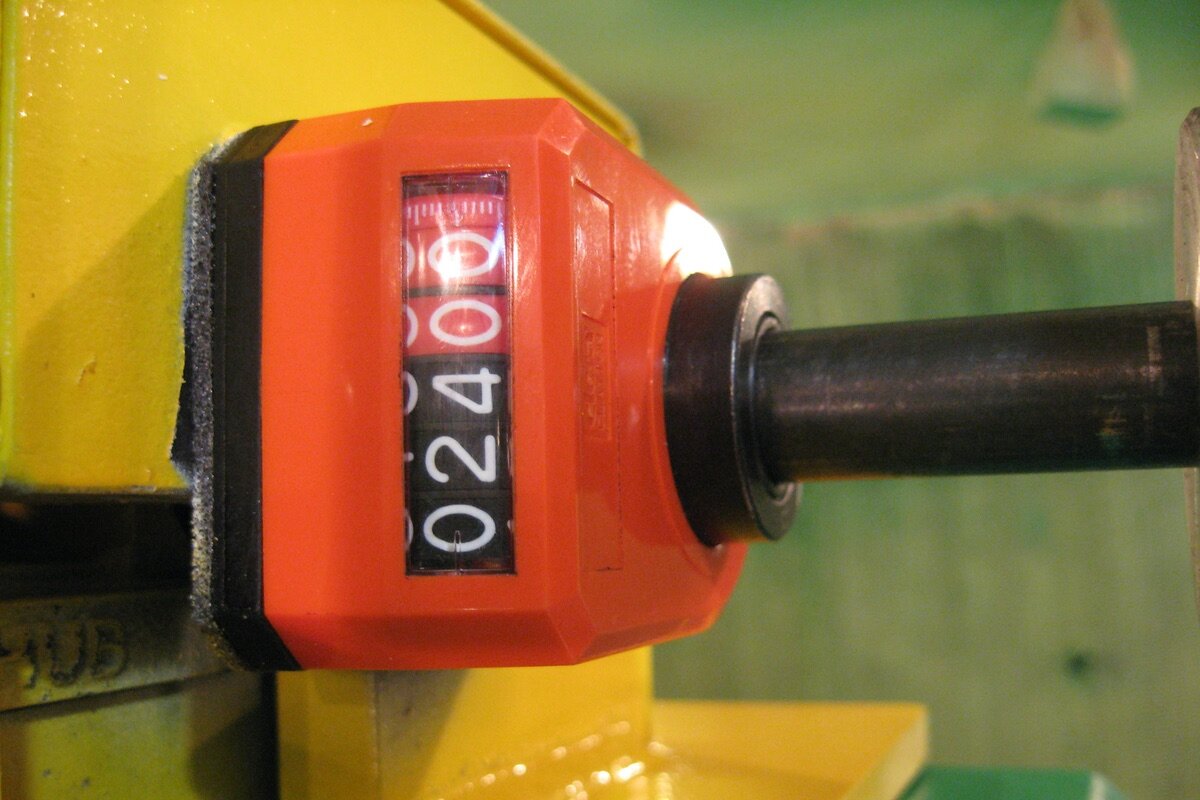

- 36” Front operated manual back gauge, 24” squaring arm
- Excellent visibility of cut
- Electric Controls including foot switch
- Even distribution of energy across the blade avoids “flexing” of the blade
- No adjustment of blade gap when switching from thin to thick material
- Fixed Low Rake Blade
- Built for forklift handling or lifting with overhead eyelet’s
- Specifications
- Model: 2574
- Metal Shear Capacity: 1/4” x 74”
- Motor: 7.5 HP, 3 Phase
- Hydraulic System Pump: 1000 psi
- Oil Capacity: 10 gallons
- Dimensions (L x W x H): 107” x 28” x 72”
- Deck Height: 32”
- Weight: 6,050 lbs.
Specifications
- Manufacturer: Uni-Hydro
- SKU: 207430 (220V)
- Shipping Method: Flatbed
- Weight: 6,150 lb
- Dimensions: 112 × 33 × 77 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 6150.0 lbs |
|---|---|
| Dimensions | 112.0 × 33.0 × 77.0 in |
| Brand | Uni-Hydro |
