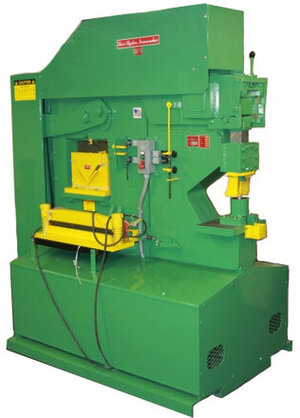

Uni-Hydro 7.5HP 220V Three Phase PRO 150 Ton Ironworker with 24” Bar Shear Blade & 24” Throat Depth 115040

Uni-Hydro 7.5HP 220V Three Phase PRO 150 Ton Ironworker with 24” Bar Shear Blade & 24” Throat Depth 115040 is a Uni-Hydro product in the Ironworkers collection.

Product Details

• Tonnage: 150
• Throat Depth: 24”
• Hydraulics: 3,000 psi
• Oil Capacity: 28 gallons
• Description
• In the World of Uni-Hydro’s immense ironworkers the Model PRO 150-24 stands above the rest. These ironworkers are the definition of monstrous, with a reputation for tremendous punching ability given the shear mass of support and design. The separate punch arm can be built with a 12-24” throat and creates so much power, any fabrication job is done with ease.
• Uni-Hydro’s PRO Series Dual Operator models are designed with separate cylinders allowing operators to run both the punching station and the back shearing section, which includes a flat bar shear, a power cavity, and a notching station.
• Features
• 150-ton open throat punch
• Four different work stations can be used without retooling stations
• Manual punch aligner – Punches and dies can be aligned without lowering machine under power
• Two-stage hydraulic pump
• Two-cylinder design maximizes machine strength, safety, reliability, and life
• 24″ bar shear with 4-sided blades
• Magnetic starter for safety and reliability
• Fixed or adjustable bar shear hold-down
• Portable electric foot control
• Built for forklift handling
• Variable stroke control
• Grease bank for lubricating machine with covers in place
• Specifications
• Model: PRO 150-24
• Punch 1-7/8” hole in 1" 2-1⁄4” hole in 13/16”
• 1-7/8” hole in 1"
• 2-1⁄4” hole in 13/16”
• Bar Shear: 1/2" x 24", 5/8” x 20”, 3/4” x 18”, 1” x 14”
• Angle Shear 90° Slug Type: 6" x 6" x 1/2" Sever Cut: 6" x 6" x 3/8"
• Slug Type: 6" x 6" x 1/2"
• Sever Cut: 6" x 6" x 3/8"
• Miter Angle 45° Slug Type: 4" x 4" x 1/2" Sever Cut: 4" x 4" x 3/8"
• Slug Type: 4" x 4" x 1/2"
• Sever Cut: 4" x 4" x 3/8"
• Rod Shear Round (Max): 1-1/2" Square (Max): 1-1/2”
• Round (Max): 1-1/2"
• Square (Max): 1-1/2”
• V Coper Notcher 90° Notcher Station: 4" x 4" x 5/16” Punch/Power Cavity: 4" x 4" x 1/2”
• Notcher Station: 4" x 4" x 5/16”
• Punch/Power Cavity: 4" x 4" x 1/2”
• Square Notcher Notcher Station: 3" x 3" x 5/16” Punch/Power Cavity: 3" x 3" x 3/8”
• Notcher Station: 3" x 3" x 5/16”
• Punch/Power Cavity: 3" x 3" x 3/8”
• Pipe Notcher (Sch 40 or 80): 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2" – Larger avail
• Brake: 6", 9”, 14”, 18”, 24” capacity
• Channel Shear: 2", 3", 4", 5”, 6”, 7”, 8”
• Strokes Per Min Light Material: 40 Max Capacity: 8
• Light Material: 40
• Max Capacity: 8
• Motor: 7.5 HP / 220v / 3ph
• Dimensions (L x W x H): 79" x 46" x 91.5"
• Bar Shear Work Height: 32.5"
• Punch Table Top Height: 39"
• Cavity Table Top Height: 43"
• Notcher Station Work Height: 43"
• Weight: 8,000 lbs.
• Options
• V-Coper Notcher
• Square Notcher
• Pipe Notcher
• Slug Type Angle Shear
• Universal Sever Housing
• Sever Plates
• Sever Housing Back
• 2-Part Brake
• Spring Return Brake
• Punch Table + Adjustable Jig
• Bar Shear Table: Extends table from 3” to 12”
• Steel Bin Catcher
• Deluxe Back Gauge: For shearing up to 6’ pieces
• Bar Shear Stop: For shearing up to 24” long pieces
• Grease Bank
• Oversize Die Stands
• Punch Nut Wrenches
• Punch Rack
• Offset Die Stands
• Oversize Punches
• Special Die Stand

Specifications

• Manufacturer: Uni-Hydro
• SKU: 115040
• Shipping Method: LTL Freight
• Weight: 8,100 lb
• Dimensions: 84 × 51 × 97 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
