Baileigh Industrial 5HP 220V Three Phase 20 Ton Horizontal Bending Press HPB-20 1230462

Baileigh Industrial 5HP 220V Three Phase 20 Ton Horizontal Bending Press HPB-20 1230462 is a Baileigh Industrial product in the Press Brakes collection.

Product Details

• Punch Height: 6"
• Working Speed: 0.51" / sec.
• Stroke Accuracy: +/– 0.002"
• Stroke Length: 12"
• Description
• This Baileigh 20-ton press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts like flanges and brackets because the material lies on a flat surface.
• Recommended for:
• Full industrial production, including shipbuilding yards, boiler manufacturers, and nuclear applications.
• Making parts that are thick, but not wide (die size is limited).
• Features
• 5 hp motor produces up to 20 tons of pressure.
• 12” stroke length.
• Horizontal bending press machine runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
• Designed for simple operation. In 15 minutes, anyone could learn to run it.
• Control the bending stroke with the foot pedal, so your hands are free to guide the material.
• Machined table, 39” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
• Quick-release tooling system makes changes fast and simple.
• Includes Multi-V tooling (V-opening die and V post).
• Many additional tooling sets are available. Baileigh can find the right one for your project or create a custom set, if necessary.
• Baileigh stocks bending press replacement parts, so they can ship them to you quickly.
• This Baileigh horizontal bending machine is covered by a 1-year parts warranty.
• Baileigh’s team of service reps, all with hands-on machine experience, are here to provide lifetime technical support by phone.
• Specifications
• Item Number: HPB-20
• Country of Manufacture: United States
• Return Speed: 0.78" / sec.
• Motor: 5 hp
• Pressure: 20 tons
• Table Height: 39"

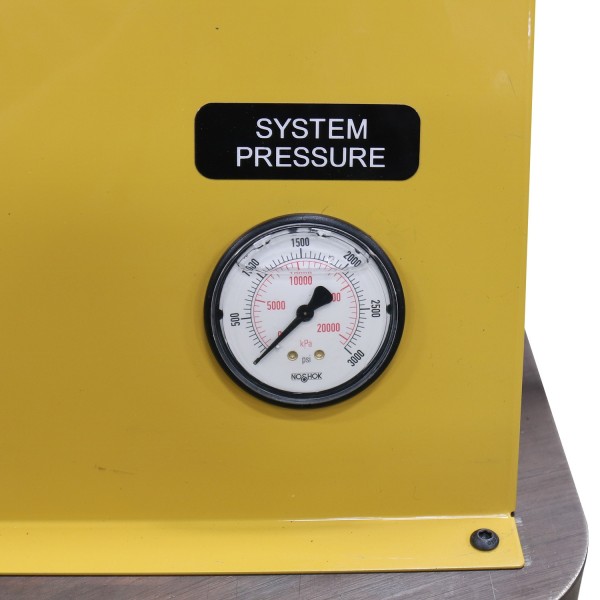

• Max. Hydraulic Pressure: 2750 psi
• Digital Readout: Yes
• Cylinder Diameter: 4"
• Fixture Holes: 1 @ 3" dia. / 3 @ 2" dia.
• Power: 220V / 3-phase
• Shipping Weight: 1,350 lbs.
• Special Notes: Includes 40° Punch, 2" & 2.5" Die
• Things to Know Before Purchase: Outside tool posts not included
• Shipping Dimensions (L x W x H): 60” x 48” x 55”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-HPB20
• UPC: 19907434412
• Shipping Method: LTL Freight
• Weight: 1,350 lb
• Dimensions: 60 × 48 × 55 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
