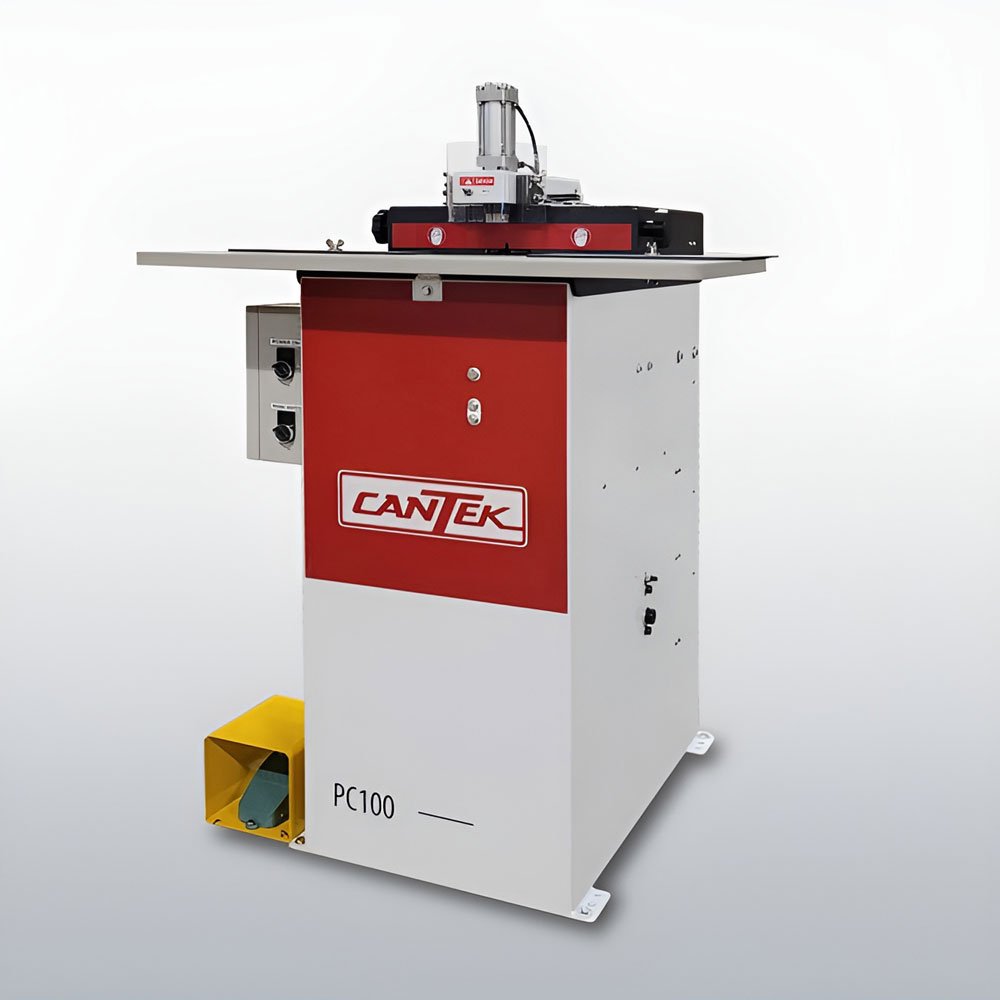

Cantek PC100 Pocket Hole Machine
$3,000.00Current price is: $3,000.00.
- 110V / 1 Phase / 60 Hz | 13 AmpsElectrical Requirements
- 46"Height
- 1Horsepower
- 33"Length
2 in stock
Overview
Cantek PC100 Pocket Hole Machine is documented as a Pocket Cutter from Cantek America. The exact PC100 configuration is mapped to GT Machinery Solutions SKU CANPC100. Recorded technical data includes horsepower: 1, total horsepower: 1HP x 2 (710 W x 2), and voltage: 110V. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Automated operation with a simple to use foot pedal
- Drills a pilot hole with a simple tap of the foot pedal in just 2 seconds
- Sturdy machine design for continuous operation
- Quick bit change feature
- Low angle pocket hole design reduces the need for clamping
- Pneumatic clamp holds work piece firmly in place
- Built-in 4” dust port
- Adjustable clear guard for safe operation
- Performs both pocket cutting and pilot hole drilling in a single cycle, enhancing throughput and decreasing material damage and waste.
- Equipped with a convenient foot pedal for fast operation, leaving your hands free to adjust the workpiece.
Technical Specifications
| Electrical Requirements | 110V / 1 Phase / 60 Hz | 13 Amps |
|---|---|
| Height | 46" |
| Horsepower | 1 |
| Length | 33" |
| Machine Dimensions (L x W x H) | 33” x 32” x 46” |
| Machine Weight | 205 lbs |
| Motor Phase | 1 |
| Phase | 1 |
| Product Type | Pocket Cutter |
| Table Height | 35” |
| Table Size | 15” x 31” |
| Total Horsepower | 1HP x 2 (710 W x 2) |
| Voltage | 110V |
| Weight | 350.000 lbs |
| Width | 32" |
Available Documents
| Weight | 350 lbs |
|---|---|
| Dimensions | 33 × 32 × 46 in |
| Brand | Cantek America |
