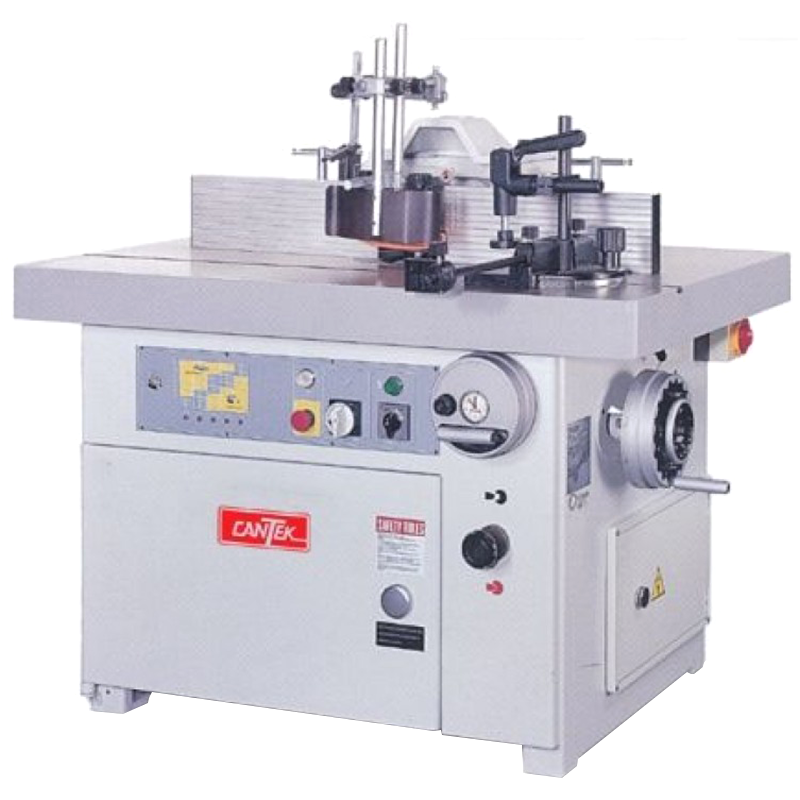

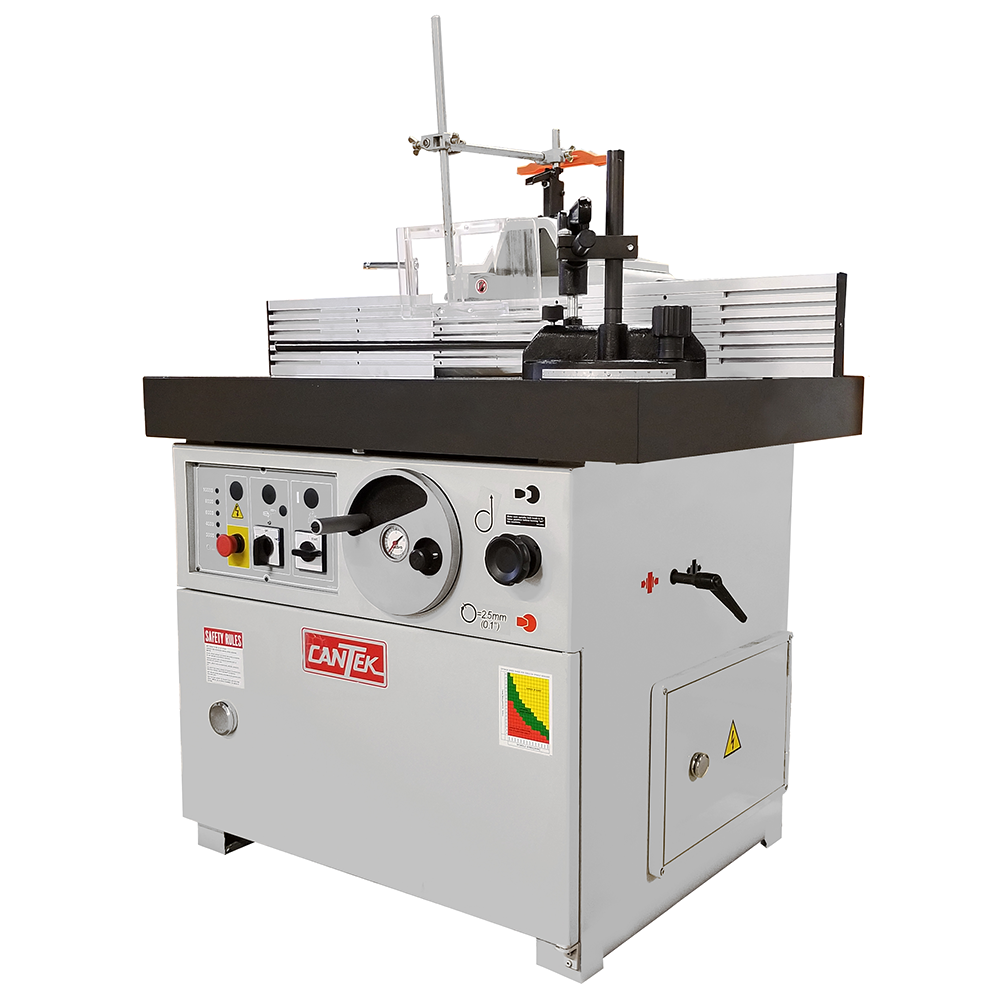

Cantek SS512TB 5 Speed Tilt Spindle Shaper 7.5HP Three Phase

Overview

Cantek SS512TB 5 Speed Tilt Spindle Shaper 7.5HP Three Phase is documented as a Tilt Spindle Shaper from Cantek America. The exact CANSS512TB-230-3 configuration is mapped to GT Machinery Solutions SKU CANSS512TB. Recorded technical data includes horsepower: 7.5 HP, phase: 3, and range of speeds: 3000/4500/6000/8000/10000 RPM. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.

Key Features

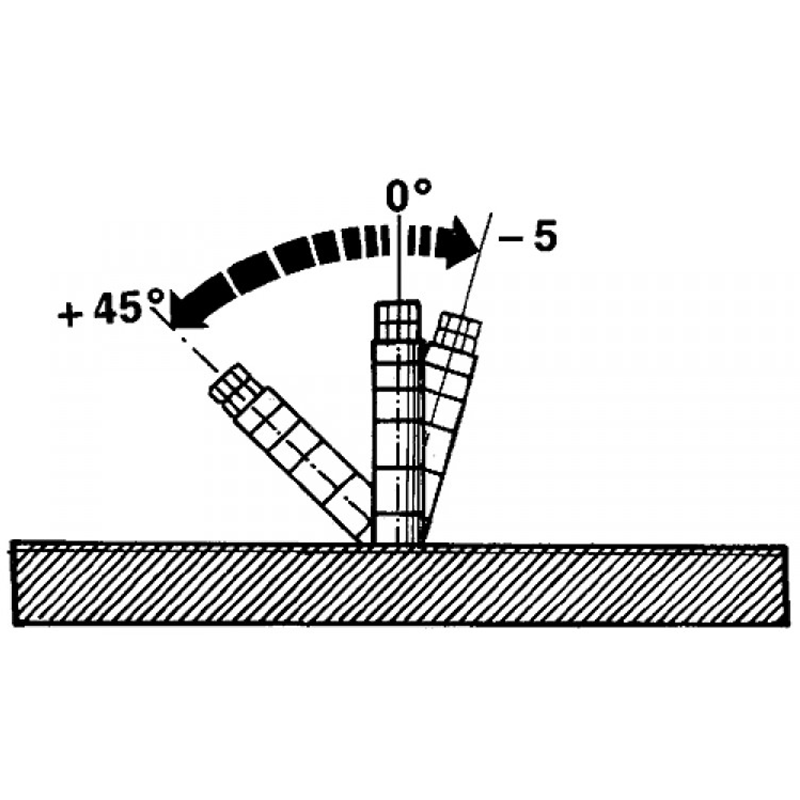

• Tilting spindle: -5o to +45o
• Powerful 7.5 HP spindle
• Cast iron sliding table runs on ball bearing for smooth table transition
• Includes (1) 1 1/4″ interchangeable spindle (other spindle diamters available upon request)
• Cast iron ground & polished table with insert rings
• Precision ground & electronically balanced spindle
• Micro spindle height adjustment with dial indicator
• Forward/reverse spindle rotation

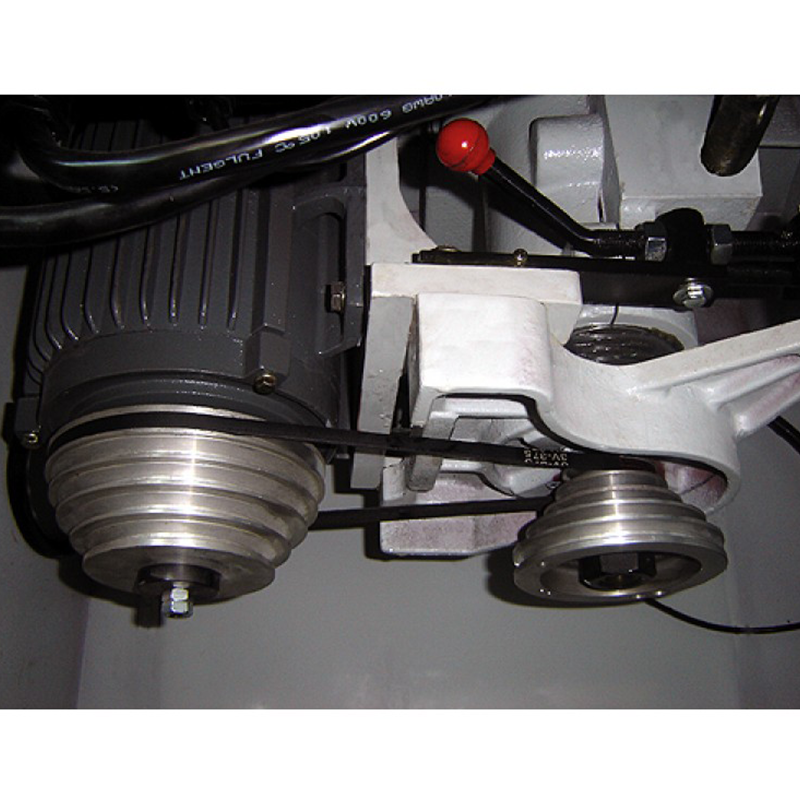

• V-belt drive with 5 feed speeds is easily accessed from the front of the machine
• Electric spindle brake for added safety

Technical Specifications
