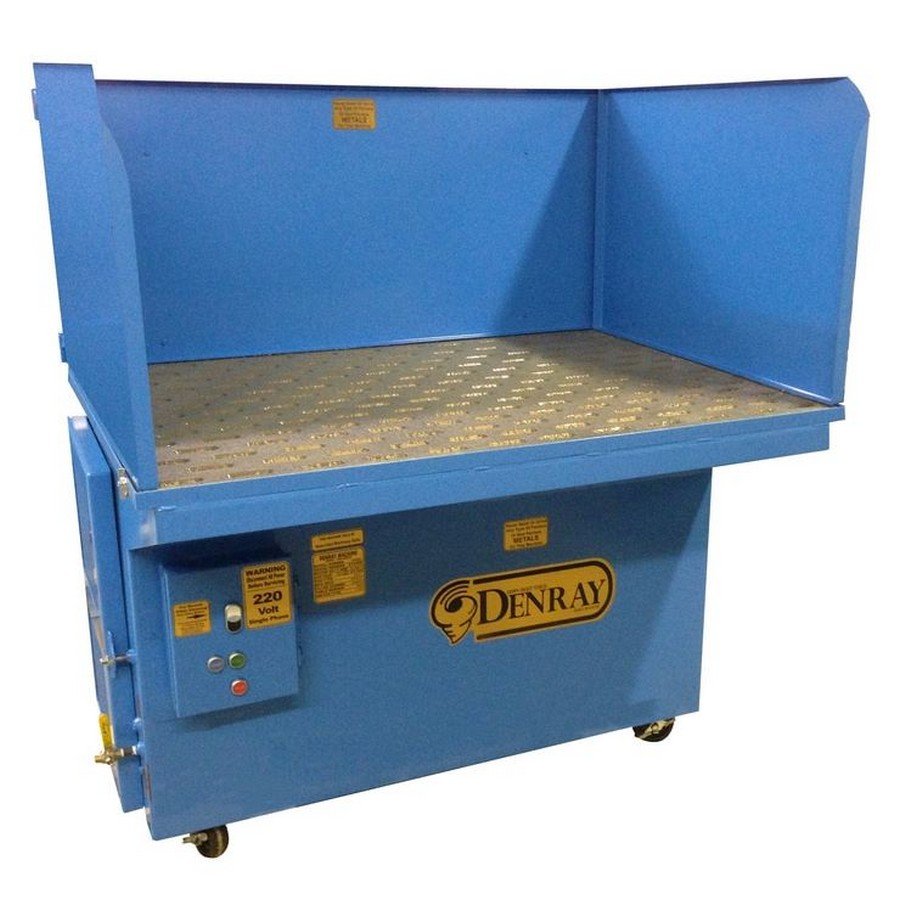

Denray 3648SD Series Sit Down Down Draft Sanding Table 36″ x 48″ 220V Three-Phase
$5,520.00Current price is: $5,520.00.
- 2400CFM
- CatridgeFiltration Type
- 34"Height
- 1.5HPHorsepower
4 in stock
Overview
Denray 3648SD Series Sit Down Down Draft Sanding Table 36" x 48" 220V Three-Phase is documented as a Down Draft Sanding Table from Denray Machine. The exact 3648SD-3 configuration is mapped to GT Machinery Solutions SKU DNR3648SD-3. Recorded technical data includes horsepower: 1.5HP, voltage: 220, and phase: 3. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Size: 36" x 48"
- Height: 34"
- Motor: 1.5HP, 1PH or 2HP, 3PH
- Voltage: 110 & 220, 1PH or 220, 3PH
- CFM: 2400
- Sound Level: 65 Decibels
- "Jet Pulse" push button cleaning
- Rubber coated top
- Casters come standard
- 3 sided 20” safety shield
Technical Specifications
| CFM | 2400 |
|---|---|
| Filtration Type | Catridge |
| Height | 34" |
| Horsepower | 1.5HP |
| Includes | Table, Safety Shield and Casters |
| Length | 48" |
| Manufacturer Series | 3648SD |
| Motor | 2HP |
| Phase | 3 |
| Power | 230V/460V/575V |
| Product Type | Down Draft Sanding Table |
| Range of Speeds | 2400 CFM |
| Size | 36" X 48" |
| Sound Level | 65 Decibels |
| Voltage | 220 |
| Weight | 600.000 lbs |
Available Documents
| Weight | 600 lbs |
|---|---|
| Dimensions | 48 × 34 in |
| Brand | Denray Machine |
