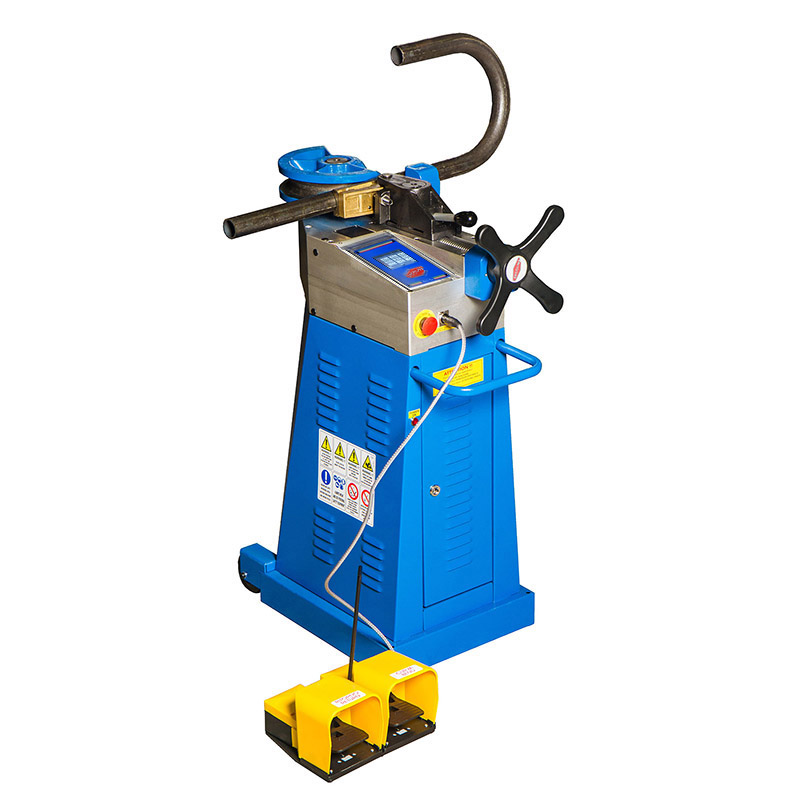

Ercolina 110V Single Phase Super Rotary Draw Bender with 2″ Tube Bending Capacity and Small Radius Tube Kit SB48-TSR
$12,025.00Current price is: $12,025.00.
- Tube Bending (max): 2"
- Pipe Bending (max): 1 1/2" Sch. 40
- Centerline Radius (max): 8⅞″
- Voltage: 110V Single Phase
Ercolina 110V Single Phase Super Rotary Draw Bender with 2″ Tube Bending Capacity and Small Radius Tube Kit SB48-TSR is a Ercolina product in the Tube & Pipe Benders collection.
Product Details
- Tube Bending (max): 2"
- Pipe Bending (max): 1 1/2" Sch. 40
- Centerline Radius (max): 8⅞″
- Voltage: 110V Single Phase
- Description
- Ercolina SB48 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.
- Ercolina's affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
- Features
- Ideal for producing consistent quality bends in pipe, tube, squares, solids, and other profiles

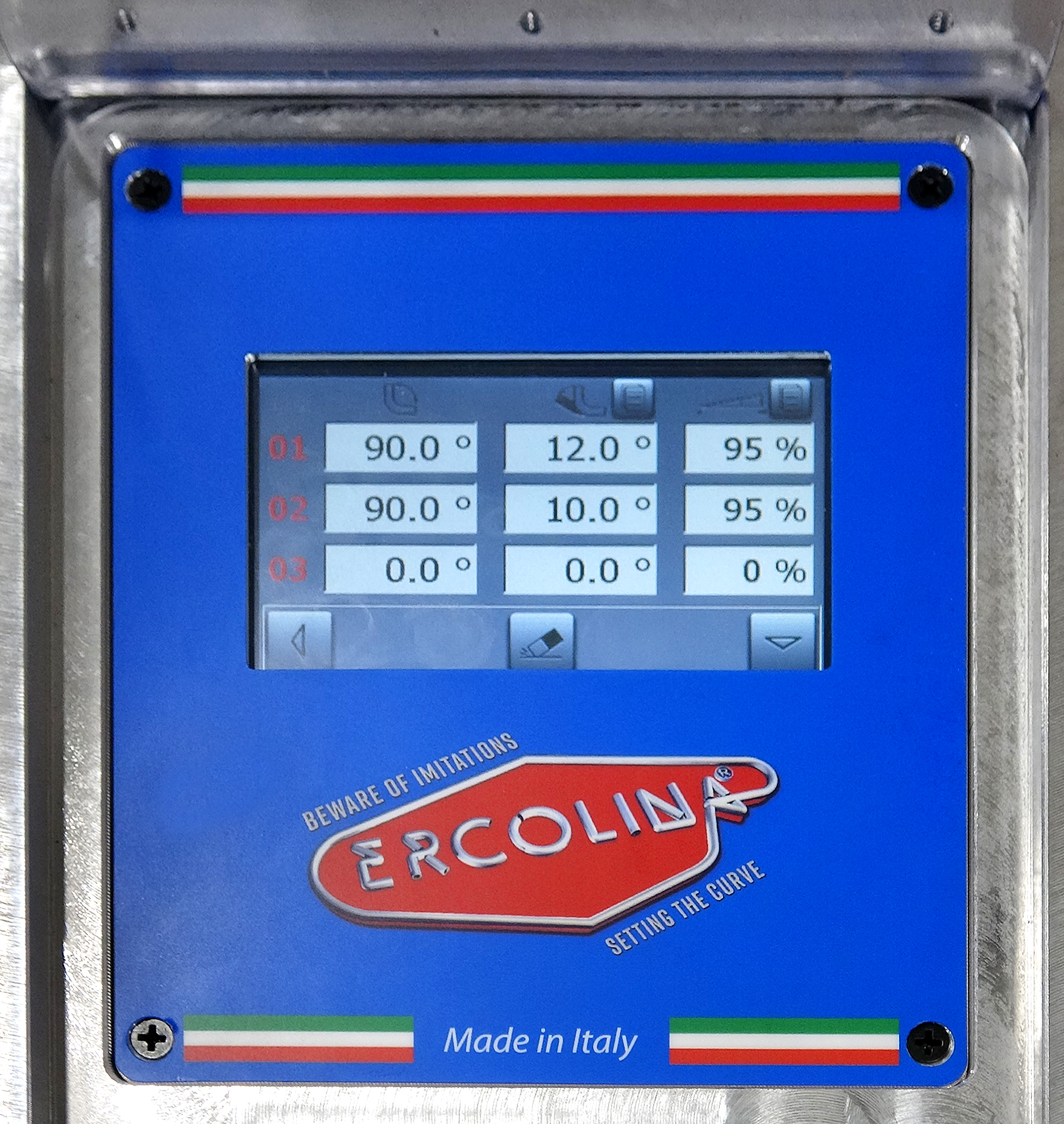

- Touch screen programming of bend angle with system diagnostics in multiple languages
- Touch screen indicates digital display of bend angle, springback, and bend speed for each angle within the program
- Bend any angle to 180° with independent material springback compensation for each bend
- Quick-change tooling system with multiple radii available

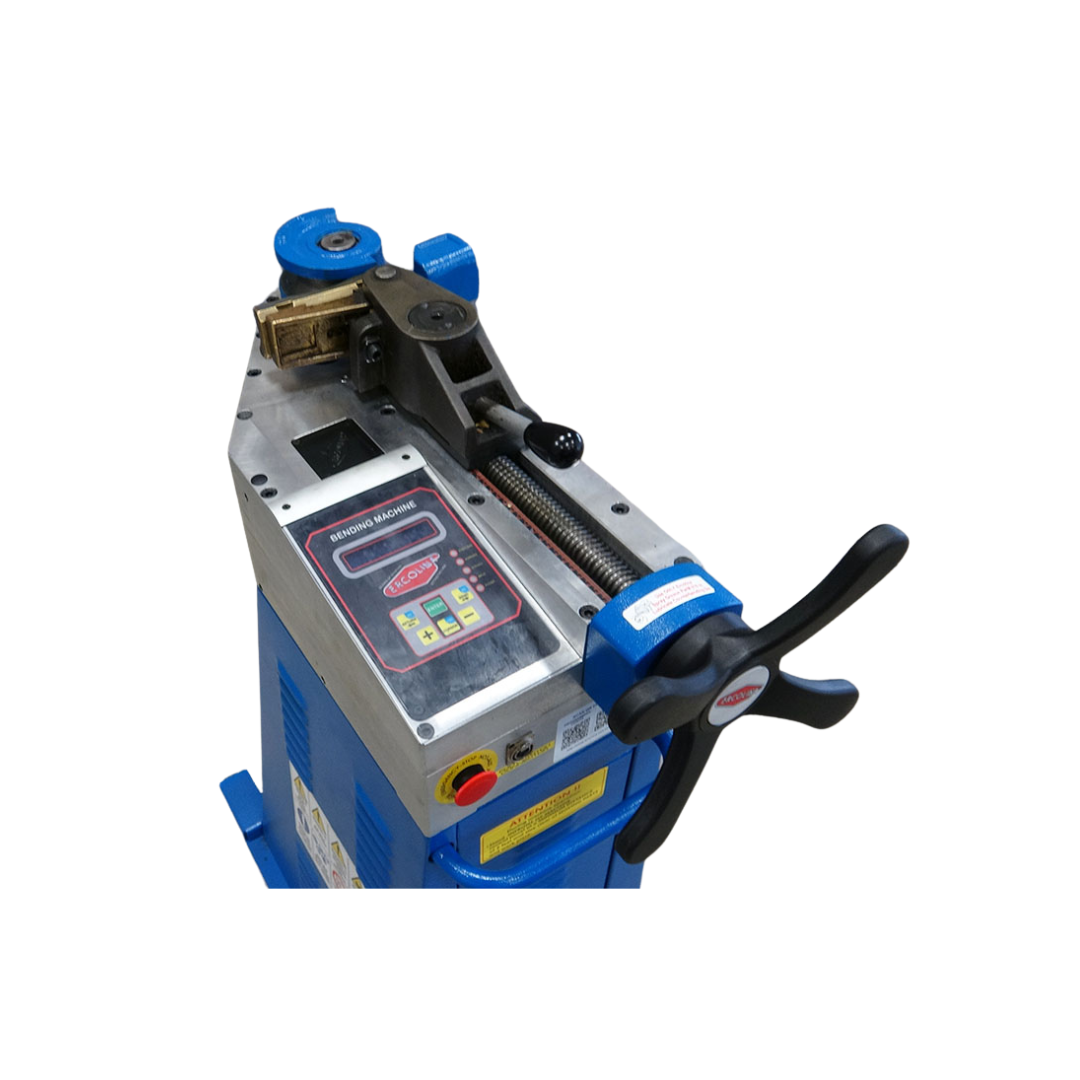

- Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
- Automatically stops at desired bend angle to end cycle
- Use control panel or foot pedal to initiate bend and return functions
- Counterbending die position monitored electronically for accuracy and repeatability
- Accepts Ercolina's A40-P two axis positioning table for multiple and sequential bends
- Portable with base wheels and lift handle
- No hydraulic components
- Specifications
- Tube Capacity (min): 1/4"
- Tube Capacity (max): 2"
- Pipe Capacity (max): 1½″ Sch. 40
- Centerline Radius (min): 2 x Ø
- Degree of Bend: 0-210°
- Bending Speed: Variable
- Programming Touch screen Program storage Multiple bends per program
- Touch screen
- Program storage
- Multiple bends per program
- Dimensions (LxWxH): 22½″ x 16¼″ x 39½″
- Weight: 300 lbs
- Bending Capacities
- Pipe Max Diameter: 1½″ Max Wall Thickness: Sch. 40
- Max Diameter: 1½″
- Max Wall Thickness: Sch. 40
- Mild Steel Tube Max Diameter: 2.000" Max Wall Thickness: 0.140"
- Max Diameter: 2.000"
- Max Wall Thickness: 0.140"
- Soft Brass Max Diameter: 1 7/8" Max Wall Thickness: 0.120"
- Max Diameter: 1 7/8"
- Max Wall Thickness: 0.120"
- Stainless Steel Max Diameter: 1 7/8" Max Wall Thickness: 0.065"
- Max Wall Thickness: 0.065"
- Hydraulic Tube Max Diameter: 2.000" Max Wall Thickness: 0.120"
- Hard Copper & Aluminum Max Diameter: 2.000" Max Wall Thickness: 0.065"
- Round Solids Max Diameter: 1¼"
- Rectangular Solids Max Diameter: 0.312" x 1-7/8"
- Max Diameter: 0.312" x 1-7/8"
- Rectangular Tube Max Diameter: 3/4" x 1-5/8" Max Wall Thickness: 0.120"
- Max Diameter: 3/4" x 1-5/8"
- Square Tube Max Diameter: 1½″ x 1½″ Max Wall Thickness: 0.120"
- Max Diameter: 1½″ x 1½″
- Solid Square Max Diameter: 1¼" x 1¼"
- TubeKit2SR Includes
- ¾” Tube CLR: 2.6 Min Wall: 0.035
- CLR: 2.6
- Min Wall: 0.035
- ⅞″ Tube CLR: 2.2 Min Wall: 0.065
- CLR: 2.2
- Min Wall: 0.065
- 1” Tube CLR: 2.6 Min Wall: 0.065
- 1 ¼” Tube CLR: 3.2 Min Wall: 0.083
- CLR: 3.2
- Min Wall: 0.083
- 1 ½” Tube CLR: 3.9 Min Wall: 0.083
- CLR: 3.9
Specifications
- Manufacturer: Ercolina
- SKU: SB48-TSR
- Shipping Method: LTL Freight
- Weight: 315 lb
- Dimensions: 48 × 48 × 48 in
- Country of Origin: Italy
| Weight | 315.0 lbs |
|---|---|
| Dimensions | 48.0 × 48.0 × 48.0 in |
| Brand | Ercolina |
