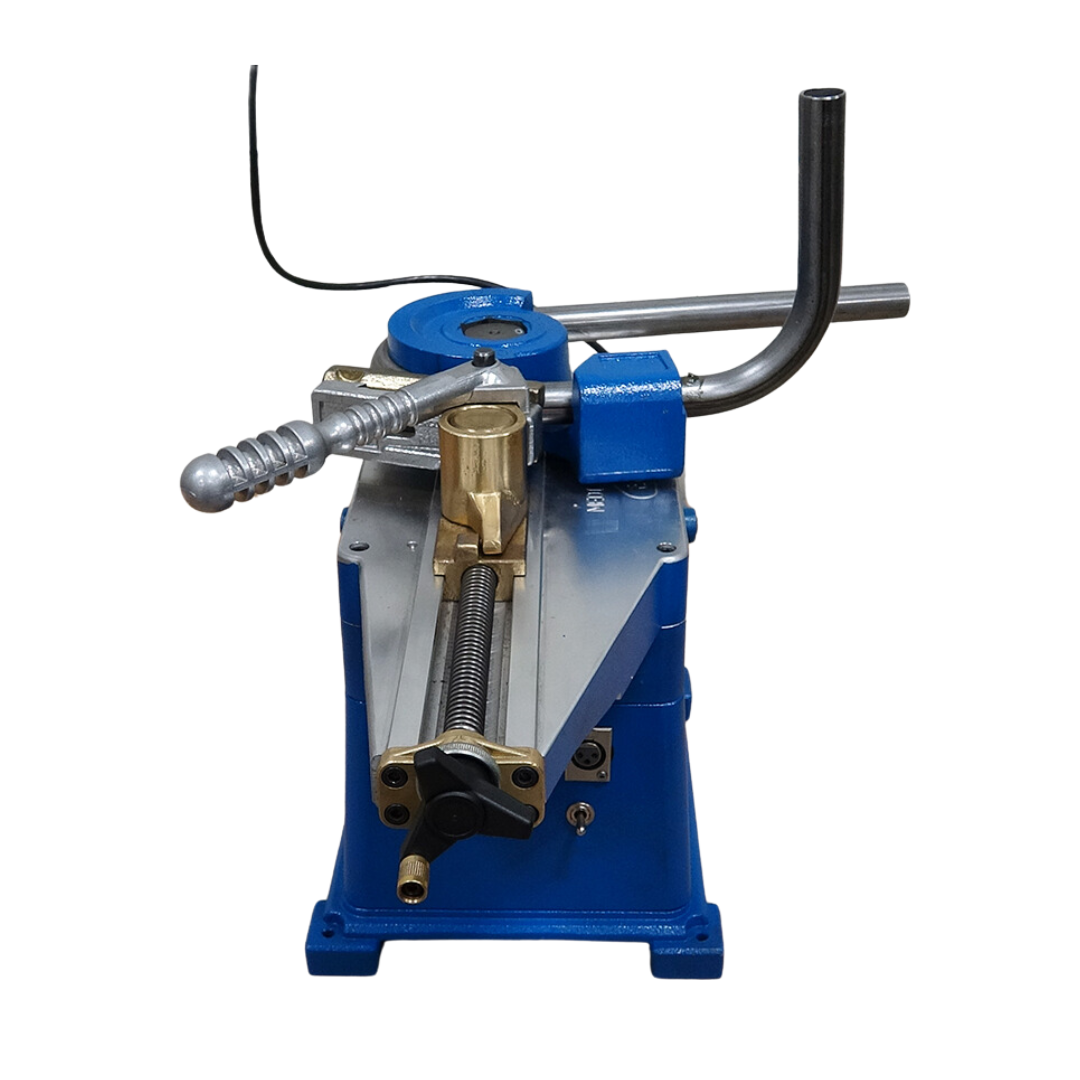

Ercolina 120V Single Phase Medi Rotary Draw Bender with 1¼” Tube Bending Capacity 070
$3,463.85Current price is: $3,463.85.
- Tube Capacity (max): 1¼”
- Pipe Capacity (max): 1” Sch. 10
- Bending Speed: 2.2 RPM
- Voltage: 120V Single Phase
Ercolina 120V Single Phase Medi Rotary Draw Bender with 1¼” Tube Bending Capacity 070 is a Ercolina product in the Tube & Pipe Benders collection.
Product Details
- Tube Capacity (max): 1¼”
- Pipe Capacity (max): 1” Sch. 10
- Bending Speed: 2.2 RPM
- Voltage: 120V Single Phase
- Description
- Ercolina’s portable model 070 Medi Bender is ideal for fabricators and contractors with job site bending applications.
- Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
- Features
- Portable machine ideal for fabricators and contractors with job site bending applications
- Rotary dial setting for bend angle and springback
- Quick-change tooling system with multiple radii available

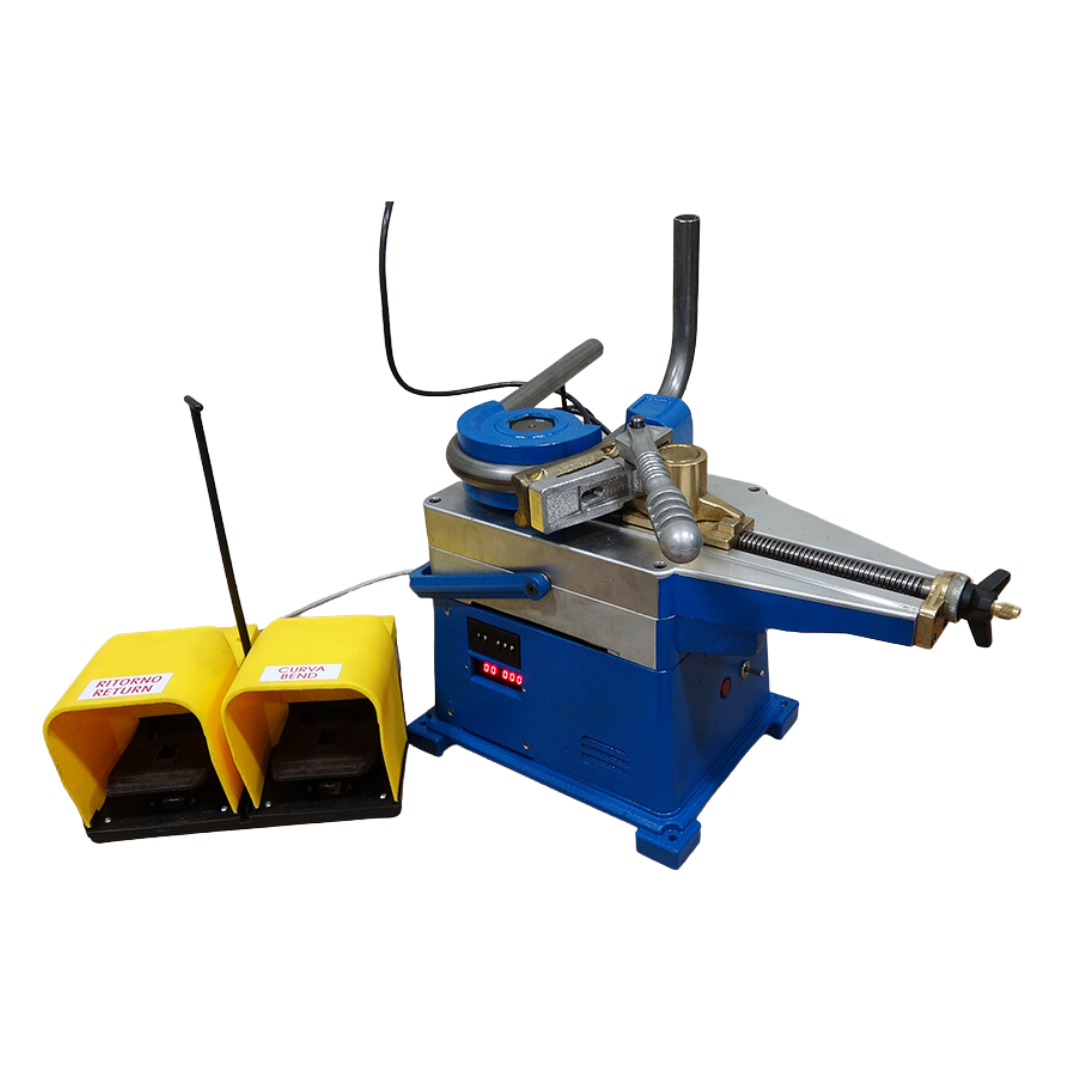

- Foot pedal control for hands-free operation
- Swing away counterbending die vise for easy material handling
- No hydraulic components
- Bend to CLR as small as 2D
- Ships with carrying case and tool kit
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications
- Specifications
- Tube Capacity (min): ¼”
- Tube Capacity (max): 1¼” (.065 wall)
- Centerline Radius (min): 2 x Ø
- Centerline Radius (max): 6⅞”
- Degree of Bend: 0-210°
- Programming: Rotary Dial with LED
- Dimensions (LxWxH): 10” x 13” x 18”
- Weight: 60 lbs
- Bending Capacities
- Pipe Max Diameter: 1.000 pipe Max Wall Thickness: Sch. 10
- Max Diameter: 1.000 pipe
- Max Wall Thickness: Sch. 10
- Mild Steel Tube Max Diameter: 1.250 Max Wall Thickness: 0.065
- Max Diameter: 1.250
- Max Wall Thickness: 0.065
- Soft Brass Max Diameter: 1.250 Max Wall Thickness: 0.120
- Max Wall Thickness: 0.120
- Stainless Steel Max Diameter: 1.125 Max Wall Thickness: 0.065
- Max Diameter: 1.125
- Hydraulic Tube Max Diameter: 1.25 Max Wall Thickness: 0.083
- Max Diameter: 1.25
- Max Wall Thickness: 0.083
- Round Solids Max Diameter: 0.7500
- Max Diameter: 0.7500
- Rectangular Solids Max Diameter: 0.375 x 1.000
- Max Diameter: 0.375 x 1.000
- Rectangular Tube Max Diameter: 0.625 x 1.000 Max Wall Thickness: 0.120
- Max Diameter: 0.625 x 1.000
- Square Tube Max Diameter: 0.750 x 0.750 Max Wall Thickness: 0.120
- Max Diameter: 0.750 x 0.750
- Options
- 220V Single Phase available
- Tri-pod Stand available as add-on
Specifications
- Manufacturer: Ercolina
- SKU: E070
- Shipping Method: Ground
- Weight: 60 lb
- Dimensions: 15 × 20 × 25 in
- Country of Origin: Italy
| Weight | 60.0 lbs |
|---|---|
| Dimensions | 15.0 × 20.0 × 25.0 in |
| Brand | Ercolina |
