Olimpic 500P-ERT Single Sided Automatic Edgebander, 3 Phase/230V
$69,000.00Current price is: $69,000.00.
- 0,3 - 6Edge Thickness
- 12m/MinFeed Speed
- 60mmMin Panel Width
- 8-60mmPanel Thickness
2 in stock
Overview
Olimpic 500P-ERT Single Sided Automatic Edgebander, 3 Phase/230V is documented as a Edgebander from SCM Group North America Inc. The exact 500P-ERT configuration is mapped to GT Machinery Solutions SKU SCM500P-ERT. Recorded technical data includes voltage: 230V, phase: 3, and feed speed: 12m/Min. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Nesting kit: To process panels coming from nesting cycle.
- ID 3000 edge brightening unit: It brightens the colour of plastic edges by heating them with hot air.
- RC-N glue scraping unit: It eliminates any glue excessing in the joint between edge and panel. Nesting processing.
- RAS-A edge scarping unit: Simple and quick change of the machining radius with the replacement of the tool kit.
- Round 2-A unit: 2-motor unit and Multiedge device for machining 2 different radii, each with a dedicate tool.
- RT-V1 premilling unit: A perfect panel surface for an excellent joint line.
- Maestro active edge: An expert operator that guides you to produce quickly and without errors.

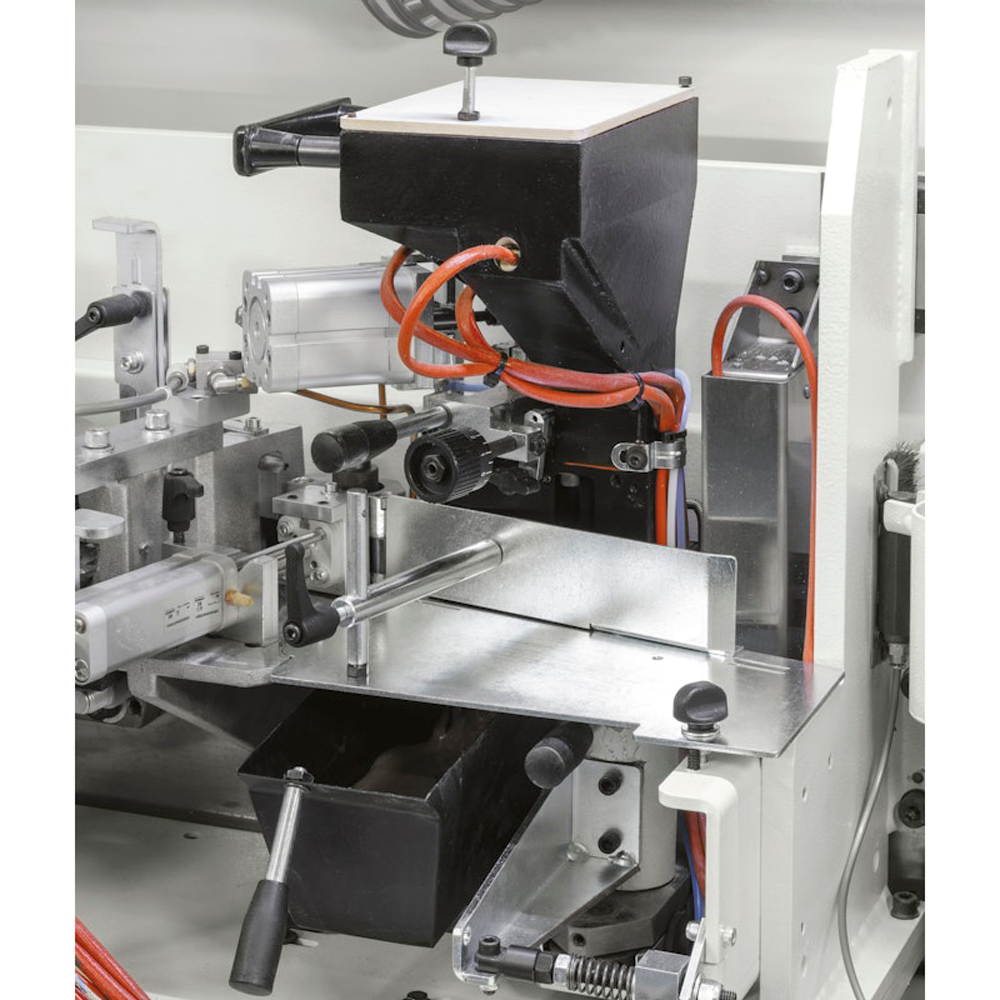

- SGP-E glue pot: Perfect joint line and use of EVA and PUR glue.

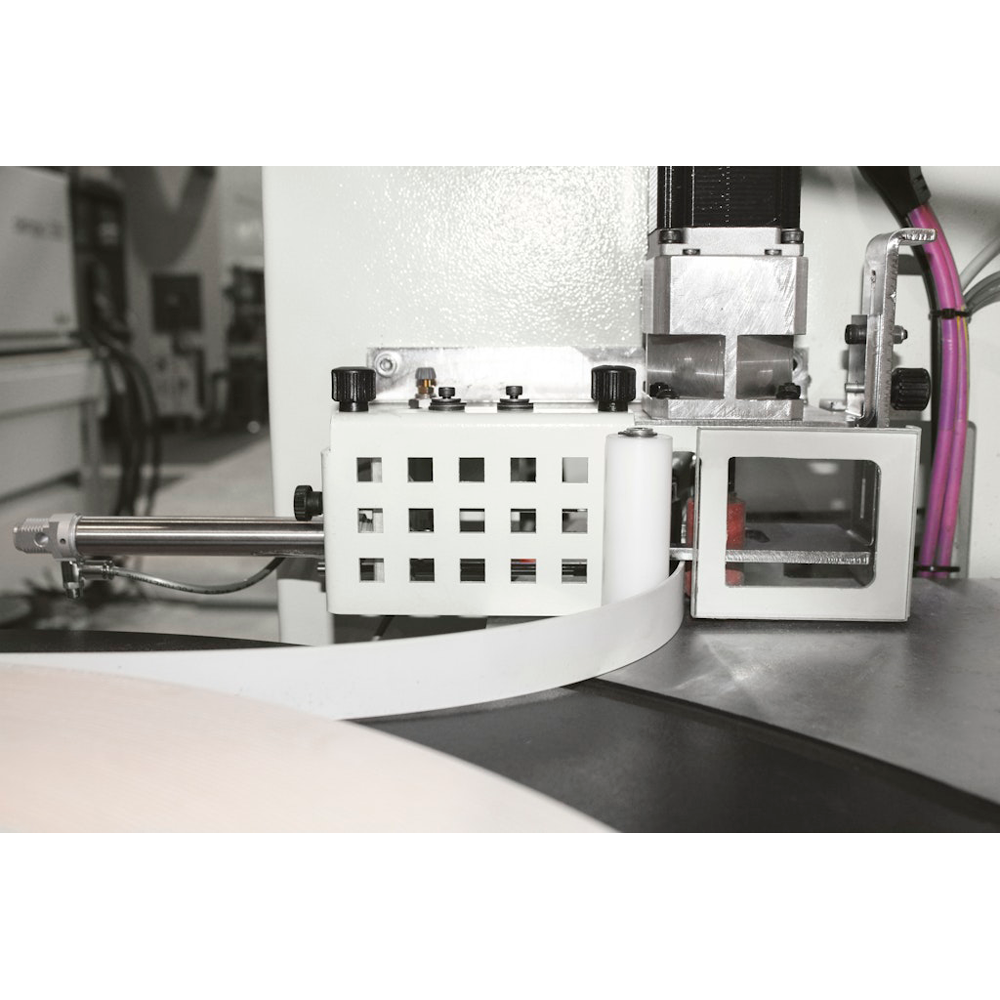

- Kit for the automatic edge loading: Fast, simple and safety edge changeover.
- R-HP Trimming-Chamfering unit: Quick changeover between 2 different radii, infinite thin edges and solid wood tipping thanks to Multiedge devices.
Technical Specifications
| Edge Thickness | 0,3 – 6 |
|---|---|
| Feed Speed | 12m/Min |
| Min Panel Width | 60mm |
| Panel Thickness | 8-60mm |
| Phase | 3 |
| Product Type | Edgebander |
| Voltage | 230V |
| Weight | 4,400.000 lbs |
| Weight | 4400 lbs |
|---|---|
| Brand | Inc., SCM Group North America |
