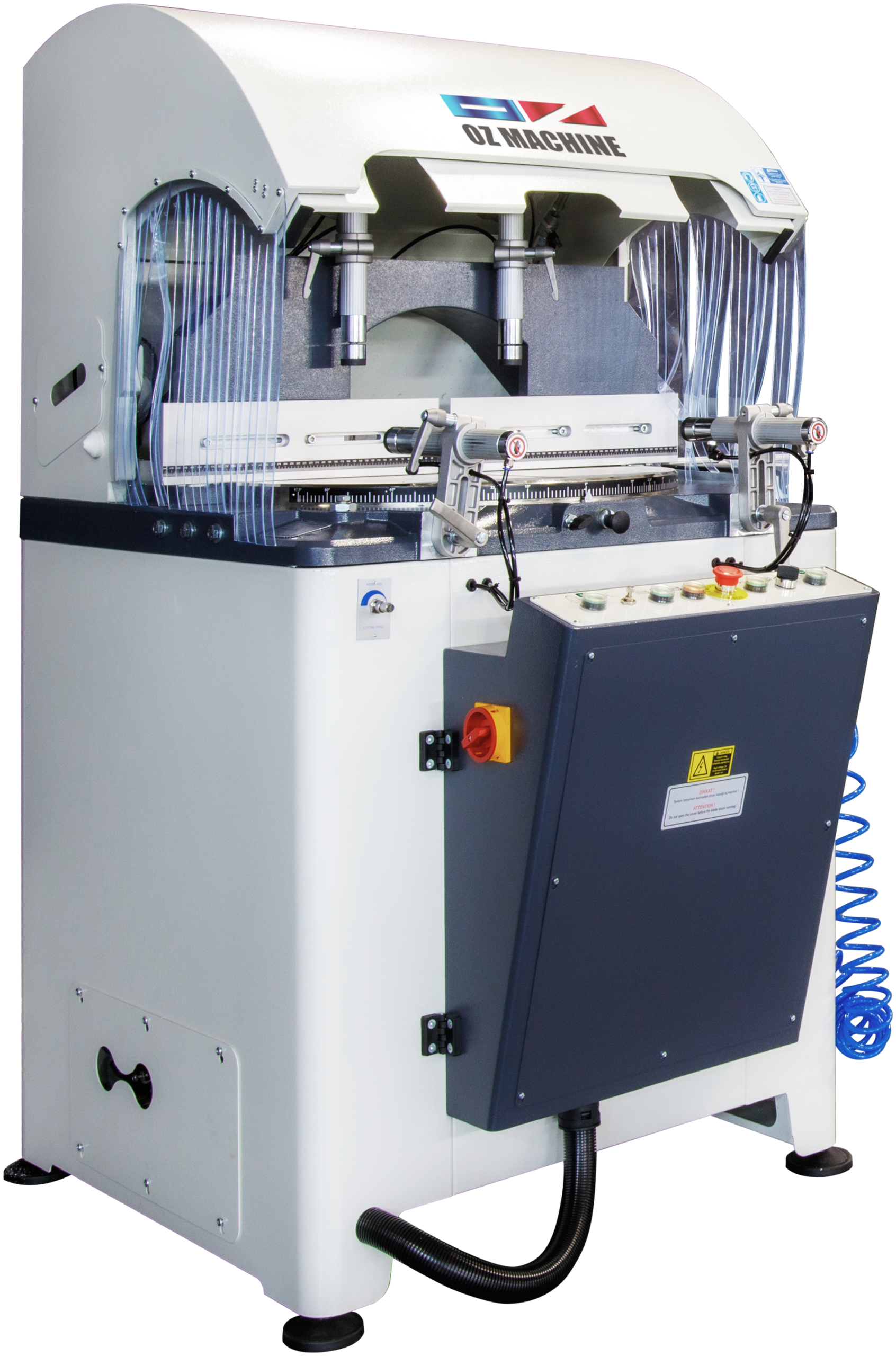

OZ Machine 220V 5.5HP 24” Automatic Cutting Machine with Upcut Saw METEOR – I 600
$10,790.00Current price is: $10,790.00.
- RPM: 2900 / 2193
- Hz: 60
- Amp: 8.2
- Air Consumption: 15 Gal/min
OZ Machine 220V 5.5HP 24” Automatic Cutting Machine with Upcut Saw METEOR – I 600 is a OZ Machine product in the Cold Saws collection.
Product Details
- RPM: 2900 / 2193
- Hz: 60
- Amp: 8.2
- Air Consumption: 15 Gal/min
- Features
- Used for cutting processes of aluminum, vinyl, and wooden profiles. Hydro-Pneumatic cutting process Secure cutting by the cover equipped with a safety sensor Cutting speed adjustment based on the profile Cutting at any desired angle between -90° and +45° Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles Increase in cutting capacity with mobile miter Pneumatic vertical and horizontal clamps
- Hydro-Pneumatic cutting process
- Secure cutting by the cover equipped with a safety sensor
- Cutting speed adjustment based on the profile
- Cutting at any desired angle between -90° and +45°
- Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles
- Increase in cutting capacity with mobile miter
- Pneumatic vertical and horizontal clamps
- Standard Equipment
- 24” saw blade
- Cooling system
- Specifications
- Blade: 24”
- HP: 5.5
- KW: 4
- Voltage: 220 V
- Air Pressure: 6-8 bar
- Weight: 734 lbs.
- Dimensions (L x W x H): 49” x 41” x 71”
- Options
- Conveyor
- Single-phase system
- Dust vacuuming system
Specifications
- Manufacturer: OZ Machine
- SKU: METEOR – I 600
- Shipping Method: LTL Freight
- Weight: 864 lb
- Dimensions: 54 × 46 × 76 in
- Country of Origin: Turkey
- Warranty: 1 Year (Parts)
| Weight | 864.0 lbs |
|---|---|
| Dimensions | 54.0 × 46.0 × 76.0 in |
| Brand | OZ Machine |
