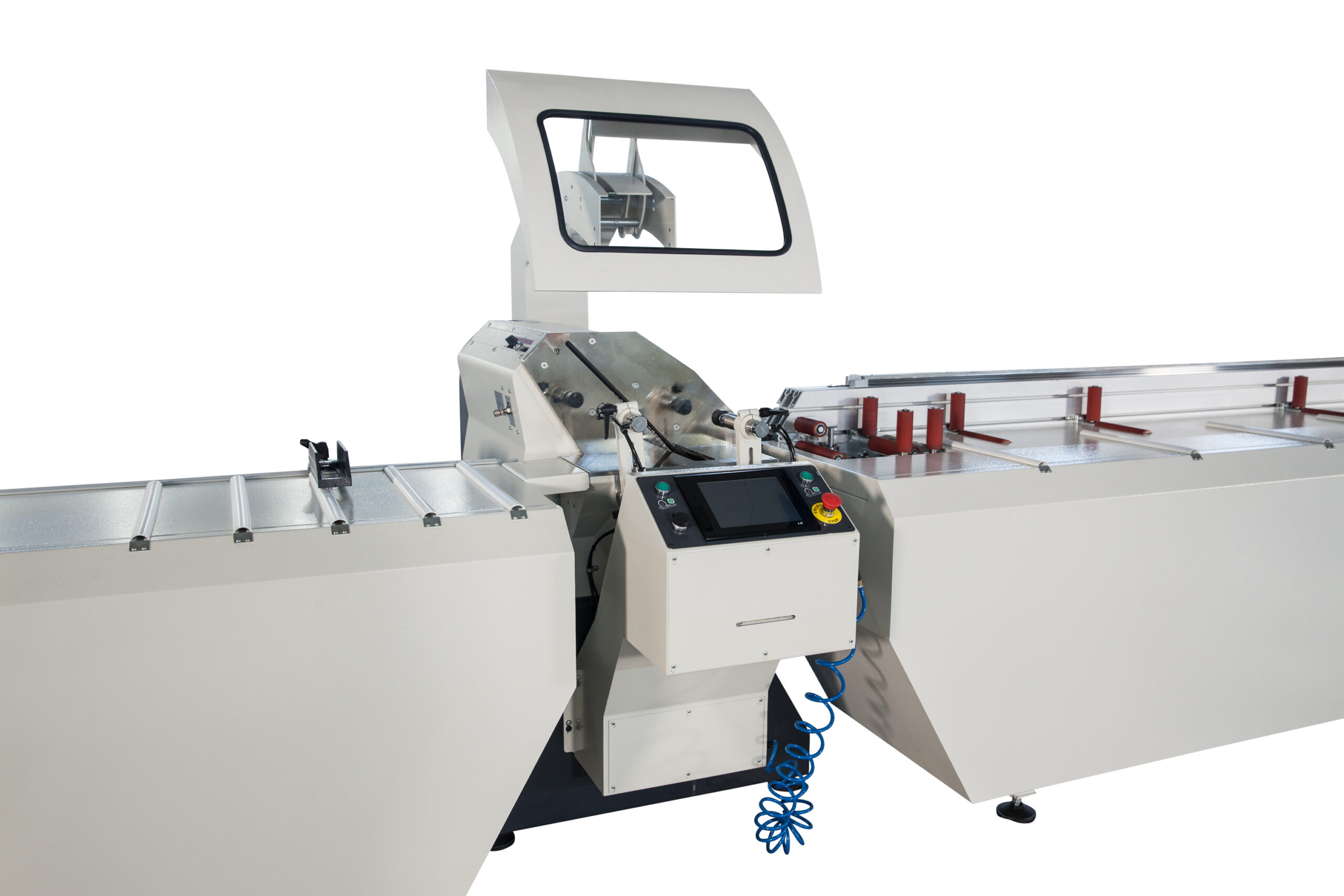

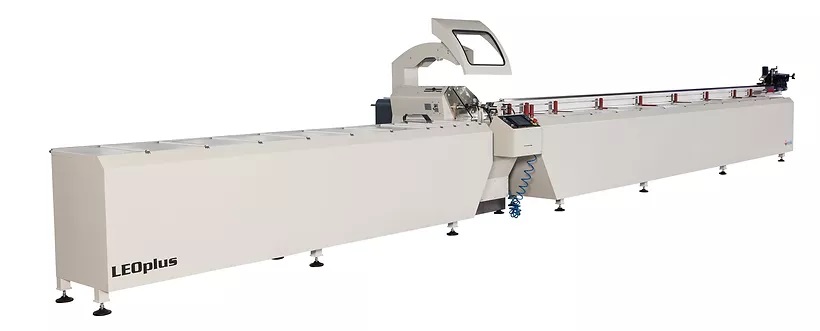

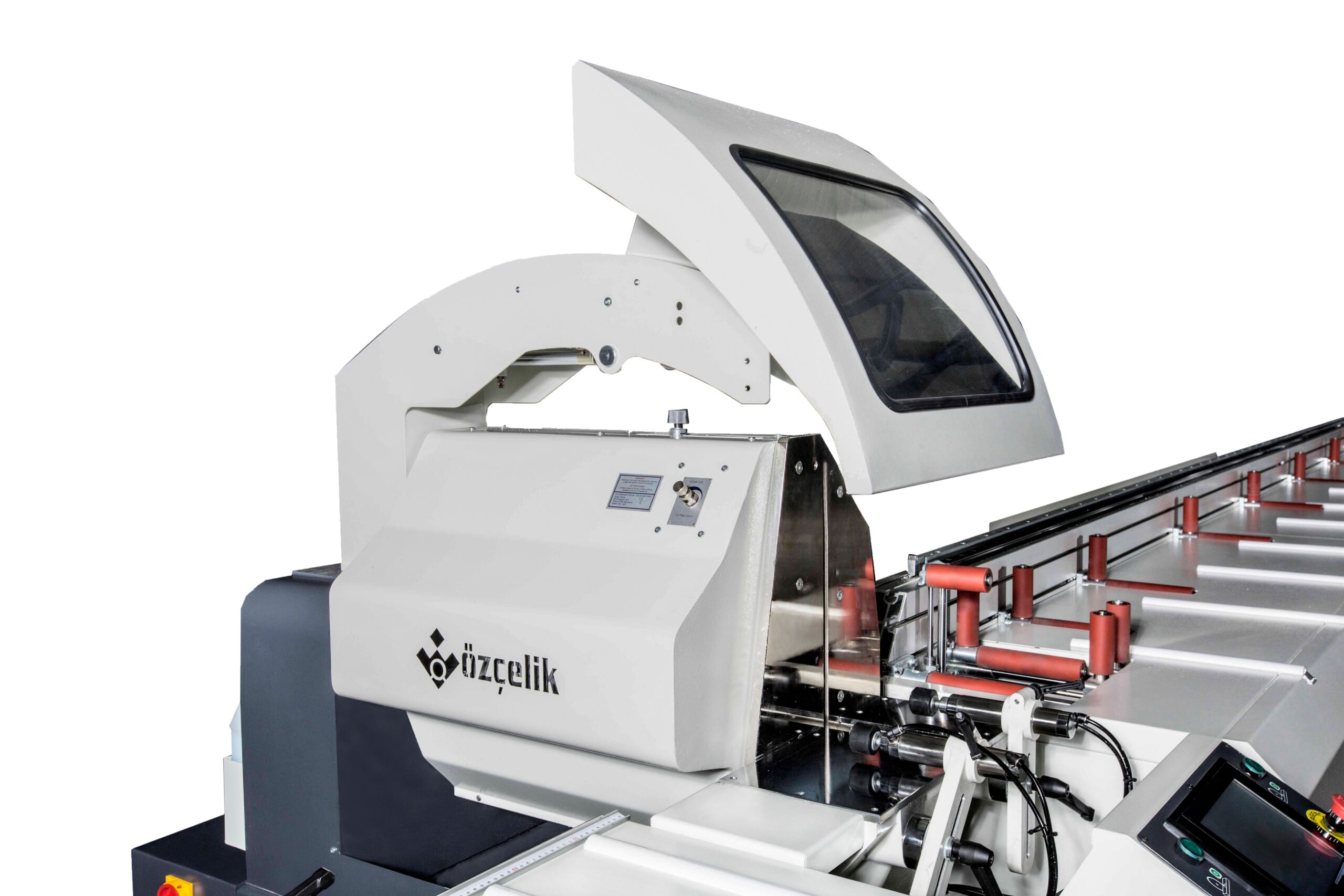

OZ Machine 400V 4HP 22″ Automatic Cutting Machine with Robot Profile Drive System LEOplus
$43,875.00Current price is: $43,875.00.
- Rapid angle positioning of heads with servo control at any angles between: -22.5° and 45°
- Saw blade motor power: 3 kW
- Robot gripper X axis positioning speed: 3,540” / min
- Maximum profile loading length: 236”
OZ Machine 400V 4HP 22″ Automatic Cutting Machine with Robot Profile Drive System LEOplus is a OZ Machine product in the Cold Saws collection.
Product Details
- Rapid angle positioning of heads with servo control at any angles between: -22.5° and 45°
- Saw blade motor power: 3 kW
- Robot gripper X axis positioning speed: 3,540” / min
- Maximum profile loading length: 236”
- Description
- Automatic cutting machine with 22” saw blade LEOplus is ideal for cutting aluminum and PVC / Vinyl profiles in various angles and thickness.
- LEOplus provides rapid and precise process with servo controlled positioning of heads at any angles between -22.5° and 45° and servo controlled robotized profile loading gripper. Safety is a topmost priority for LEOplus together with the horizontal and vertical clamps which improve the cutting quality.
- Features
- Used for cutting processes of aluminum and PVC profiles. Hydro-Pneumatic cutting Servo controlled rotation axis Automatic positioning at all degrees between -22.5° and +45° with servo motion system Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles Industrial PC with Windows based touchscreen and easy to use practical interface Remote access Data transfer over remote network connection, Ethernet, and USB Batch processing and precision cutting Secure cutting by the cover equipped with a safety sensor Process programming and large memory Double hand control application Adjustable saw blade travel speed Ability to control saw blade travel distance Ability to perform cutting automatically from the list or manually Automatic horizontal clamps 90° and angular slicing Automatic size calculation for mold cutting Output conveyor with manual gauge Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces. Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting Ability to use full length of loaded profile (Excluding angle and cutting waste)
- Hydro-Pneumatic cutting
- Servo controlled rotation axis
- Automatic positioning at all degrees between -22.5° and +45° with servo motion system
- Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles
- Industrial PC with Windows based touchscreen and easy to use practical interface
- Remote access
- Data transfer over remote network connection, Ethernet, and USB
- Batch processing and precision cutting
- Secure cutting by the cover equipped with a safety sensor
- Process programming and large memory
- Double hand control application
- Adjustable saw blade travel speed
- Ability to control saw blade travel distance
- Ability to perform cutting automatically from the list or manually
- Automatic horizontal clamps
- 90° and angular slicing
- Automatic size calculation for mold cutting
- Output conveyor with manual gauge
- Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces.
- Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
- Ability to use full length of loaded profile (Excluding angle and cutting waste)
- Standard Equipment
- 22" saw blade (1 pcs)
- Cooling system
- Specifications
- HP: 4
- KW: 3
- RPM: 3000
- Voltage: 400 V
- Air Pressure: 6-8 bar
- Air Consumption: 62 L / min
- Maximum internal rotation angle: 45°
- Maximum external rotation angle: -22.5°
- Cemented carbide saw blade: 1
- Robot gripper X axis positioning speed: 3,540” (90m) / min
- Maximum profile loading length: 236” (6,000mm)
- Weight: 670 lbs.
- Dimensions (L x W x H): 59” x 43” 70”
- Options
- Barcode printer
- Dust vacuuming system
- Profile height measurement
- Digital adjustment of saw blade travel distance
- Vertical clamp
- Servo controlled vice gripper
Specifications
- Manufacturer: OZ Machine
- SKU: LEOplus
- Shipping Method: LTL Freight
- Weight: 705 lb
- Dimensions: 64 × 48 × 75 in
- Country of Origin: Turkey
- Warranty: 1 Year (Parts)
| Weight | 705.0 lbs |
|---|---|
| Dimensions | 64.0 × 48.0 × 75.0 in |
| Brand | OZ Machine |
