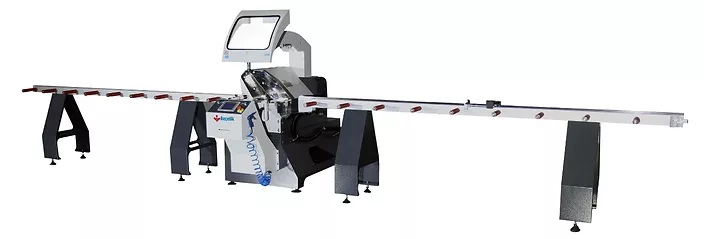

OZ Machine 400V 4HP 22″ Automatic Digital Cutting Machine with 2 Axis Servo Control LEO R
$20,725.00Current price is: $20,725.00.
- Saw blade motor power: 3 kW
- RPM: 3000
- Hz: 50 / 60
- Amp: 15 A
OZ Machine 400V 4HP 22″ Automatic Digital Cutting Machine with 2 Axis Servo Control LEO R is a OZ Machine product in the Cold Saws collection.
Product Details
- Saw blade motor power: 3 kW
- RPM: 3000
- Hz: 50 / 60
- Amp: 15 A
- Description
- LEO R , 2 axis servo controlled single head cutting machine with 22” saw blade, is ideal for cutting aluminum and PVC profiles in various angles and thickness. LEO R provides rapid and automatic positioning of heads with servo control at any angles between -22.5° and 45°. LEO R enables precise cutting with its servo controlled digital stop. Safety is a topmost priority for LEO R together with the horizontal and vertical clamps along with cutting zone protection cover which improves the cutting safety.
- Features
- Used for cutting processes of aluminum, vinyl, and wooden profiles. Hydro-Pneumatic cutting Servo controlled rotation axis Secure cutting by the cover equipped with a safety sensor Automatic positioning at all degrees between -22.5° and +45° with servo motion system Industrial PC with Windows based touchscreen and easy to use practical interface Remote access Data transfer over remote network connection, Ethernet, and USB Batch processing and precision cutting Ability to perform cutting automatically from the list or manually Adjustable saw blade travel speed Ability to control saw blade travel distance Process programming and large memory Automatic horizontal clamps Automatic size calculation for mold cutting Double hand control application
- Hydro-Pneumatic cutting
- Servo controlled rotation axis
- Secure cutting by the cover equipped with a safety sensor
- Automatic positioning at all degrees between -22.5° and +45° with servo motion system
- Industrial PC with Windows based touchscreen and easy to use practical interface
- Remote access
- Data transfer over remote network connection, Ethernet, and USB
- Batch processing and precision cutting
- Ability to perform cutting automatically from the list or manually
- Adjustable saw blade travel speed
- Ability to control saw blade travel distance
- Process programming and large memory
- Automatic horizontal clamps
- Automatic size calculation for mold cutting
- Double hand control application
- Standard Equipment
- 22" saw blade
- Cooling system
- Digital conveyor – LEO K (1 pcs)
- Specifications
- Rapid angle positioning of the head with servo control at any angles between: -22.5° and +45°
- Carbide saw blade: 1
- Saw blade diameter: 22” (550mm)
- HP: 4
- Voltage: 400 V
- Air pressure: 6-8 bar
- Air consumption: 30 L / min
- Weight: 904 lbs.
- Dimensions (L x W x H): 66” x 40” x 67”
- Options
- Conveyor (COMET M)
- Barcode printer
- Dust vacuuming system
- Profile height measurement
Specifications
- Manufacturer: OZ Machine
- SKU: LEO R
- Shipping Method: LTL Freight
- Weight: 950 lb
- Dimensions: 71 × 45 × 72 in
- Country of Origin: Turkey
- Warranty: 1 Year (Parts)
| Weight | 950.0 lbs |
|---|---|
| Dimensions | 71.0 × 45.0 × 72.0 in |
| Brand | OZ Machine |
