OZ Machine 400V 4HP 22″ Radial Cutting Machine – Automation with 2 Axis Servo Controlled LEO – X

OZ Machine 400V 4HP 22″ Radial Cutting Machine – Automation with 2 Axis Servo Controlled LEO – X is a OZ Machine product in the Cold Saws collection.

Product Details

• Saw blade motor power: 3 kW
• RPM: 3000
• Hz: 50 / 60
• Amp: 15 A
• Description
• LEO – X, the radial automatic cutting machine with 2 axis servo control and 22” saw blade, is ideal for cutting aluminum and PVC profiles with different angles and thickness. LEO – X designed for cutting wider profiles. With the servo motion system, automatic positioning at all degrees between 30O and 90O allows for perfect cutting operation. Safety is a topmost priority for LEO – X together with the horizontal and vertical clamps along with cutting zone protection cover which improves the cutting safety.
• Features
• Used for cutting processes of aluminum, vinyl, and wooden profiles. Hydro-Pneumatic cutting Servo controlled rotation axis Secure cutting by the cover equipped with a safety sensor Automatic positioning at all degrees between 30° and 90° with servo motion system Industrial PC with Windows based touchscreen and easy to use practical interface Remote Access Data transfer over remote network connection, Ethernet, and USB Batch processing and precision cutting Ability to perform cutting automatically from the list or manually Process programming and large memory Double hand control application Adjustable saw blade travel speed Ability to control saw blade travel distance Automatic horizontal clamps Automatic size calculation for mold cutting Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces. Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
• Hydro-Pneumatic cutting
• Servo controlled rotation axis

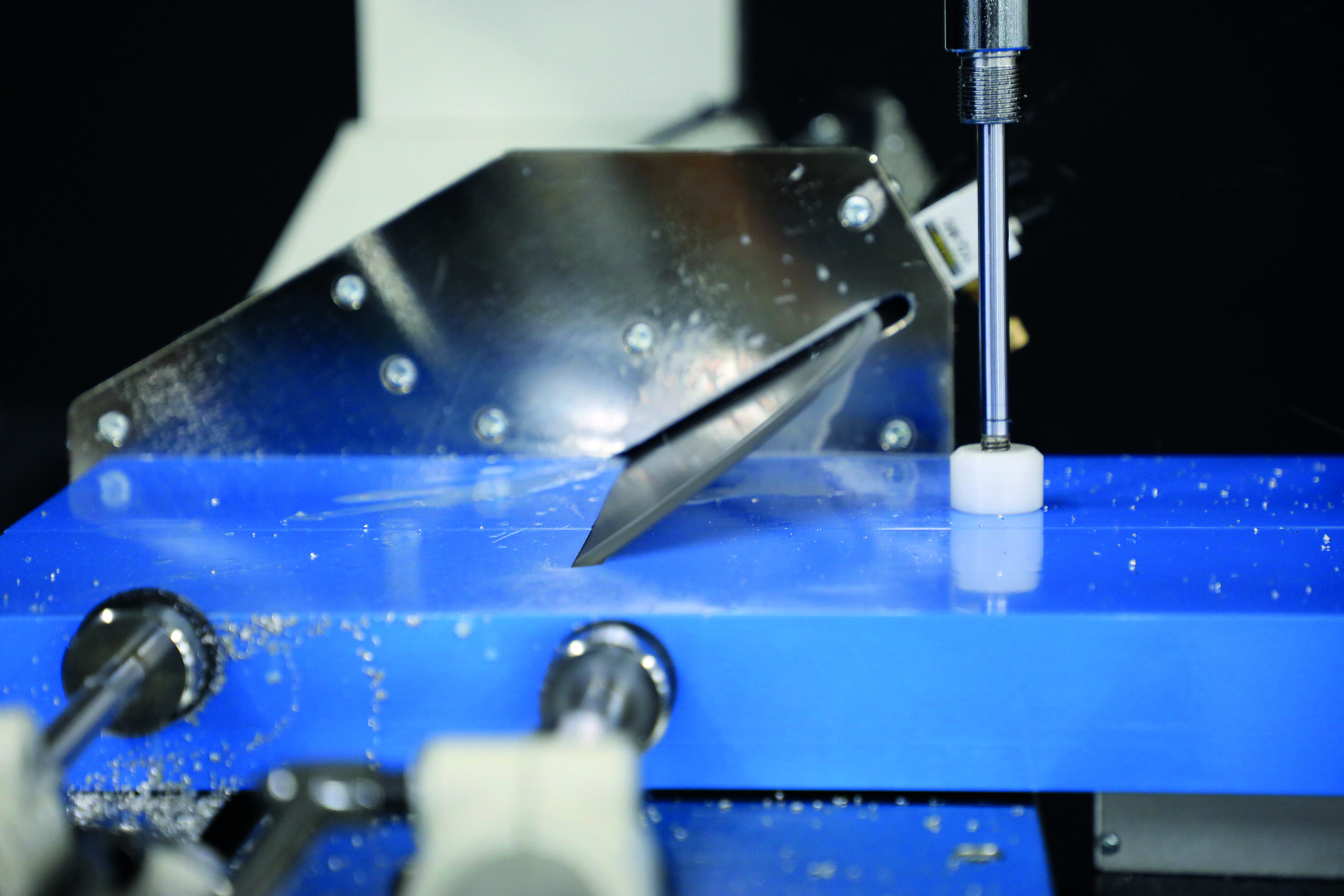

• Secure cutting by the cover equipped with a safety sensor
• Automatic positioning at all degrees between 30° and 90° with servo motion system
• Industrial PC with Windows based touchscreen and easy to use practical interface
• Remote Access
• Data transfer over remote network connection, Ethernet, and USB
• Batch processing and precision cutting
• Ability to perform cutting automatically from the list or manually
• Process programming and large memory
• Double hand control application
• Adjustable saw blade travel speed
• Ability to control saw blade travel distance
• Automatic horizontal clamps
• Automatic size calculation for mold cutting
• Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces.
• Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
• Standard Equipment
• 22" saw blade
• Cooling system
• Digital conveyor
• Specifications
• Rapid angle positioning of the head with servo control at any angles between: 30° and 90°
• Maximum internal rotation angle: 30
• Carbide saw blade: 1
• Saw blade diameter: 22” (550mm)
• HP: 4
• Voltage: 400 V
• Air pressure: 6-8 bar
• Air consumption: 30 L / min
• Weight: 975 lbs.
• Dimensions (L x W x H): 69” x 45” x 60”
• Options
• Barcode printer
• Dust vacuuming system
• Profile height measurement

Specifications

• Manufacturer: OZ Machine
• SKU: LEO – X
• Shipping Method: LTL Freight
• Weight: 1,020 lb
• Dimensions: 74 × 50 × 65 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
