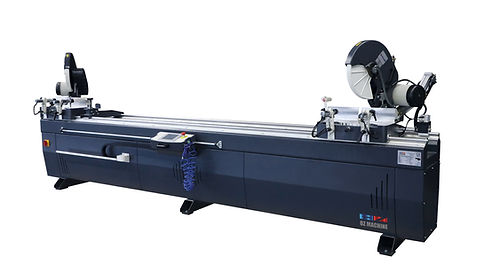

Oz Machine 400V Three Phase 16” Double-Head Cutting Machine with Semi-Automatic Digital Display Gemini-IIA
$19,110.00Current price is: $19,110.00.
- Saw blade diameter: 16”
- Saw blade speed: 3000 rpm
- Max profile loading length: 177”
- Cutting Length Capacity: 24” – 137”
Oz Machine 400V Three Phase 16” Double-Head Cutting Machine with Semi-Automatic Digital Display Gemini-IIA is a OZ Machine product in the Cold Saws collection.
Product Details
- Saw blade diameter: 16”
- Saw blade speed: 3000 rpm
- Max profile loading length: 177”
- Cutting Length Capacity: 24” – 137”
- Description
- The OZ Machine Gemini-II A is a semi-automatic double head cutting machine with 16” saw blades. It is ideal for cutting aluminum, PVC, and wood profiles in various angles and thickness.
- Features
- Hydro-Pneumatic cutting
- Electronically controlled X-Axis
- Positioning control with magnetic ruler
- Safe cutting with saw blade barrier
- Cutting at any desired angle between -45° and +45°
- 0°, 15°, 22.5°, 30°, 45° right and left angle fixing
- Automatic horizontal and vertical pneumatic clamps
- Profile support unit
- Adjustable saw blade travel speed
- Ability to save recipes
- Precision cutting measurement with digital indicator
- Touchscreen control panel
- Saw blade stroke speed adjustment
- Cooling lubrication system
- Manual intermediate profile support
- Saw blade protection covers
- Moving head positioning control with linear scale
- Standard Equipment
- Hydro-Pneumatic Cutting Feed Adjustment
- Electro Control X-Axis
- 16” saw blade (2 pcs)
- Cooling System
- Specifications
- Cutting length w/Double Head at 90° & 45° Minimum Length: 24” Max Length: 137”
- Minimum Length: 24”
- Max Length: 137”
- X-Axis Positioning Speed: 590 in/min
- Max Internal Rotation Angle: 45°
- Max External Rotation Angle: -45°
- Air Pressure: 6-8 bar
- Air Consumption: 13 L/min
- Mobile Head Motor: 0.75HP / 1400rpm / 60hz / 4.5Amp / 0.55kW
- Electrical Requirements: 400V / Three Phase / 2HP / 60Hz / 1.5kW / 9Amp
- Machine Dims: 165” x 41” x 60”
- Approx Weight: 1,382 lbs
- Optional Add-Ons
- Vacuum Cleaner for Chips
Specifications
- Manufacturer: OZ Machine
- SKU: Gemini-IIA
- Shipping Method: LTL Freight
- Weight: 1,450 lb
- Dimensions: 170 × 48 × 65 in
| Weight | 1450.0 lbs |
|---|---|
| Dimensions | 170.0 × 48.0 × 65.0 in |
| Brand | OZ Machine |
