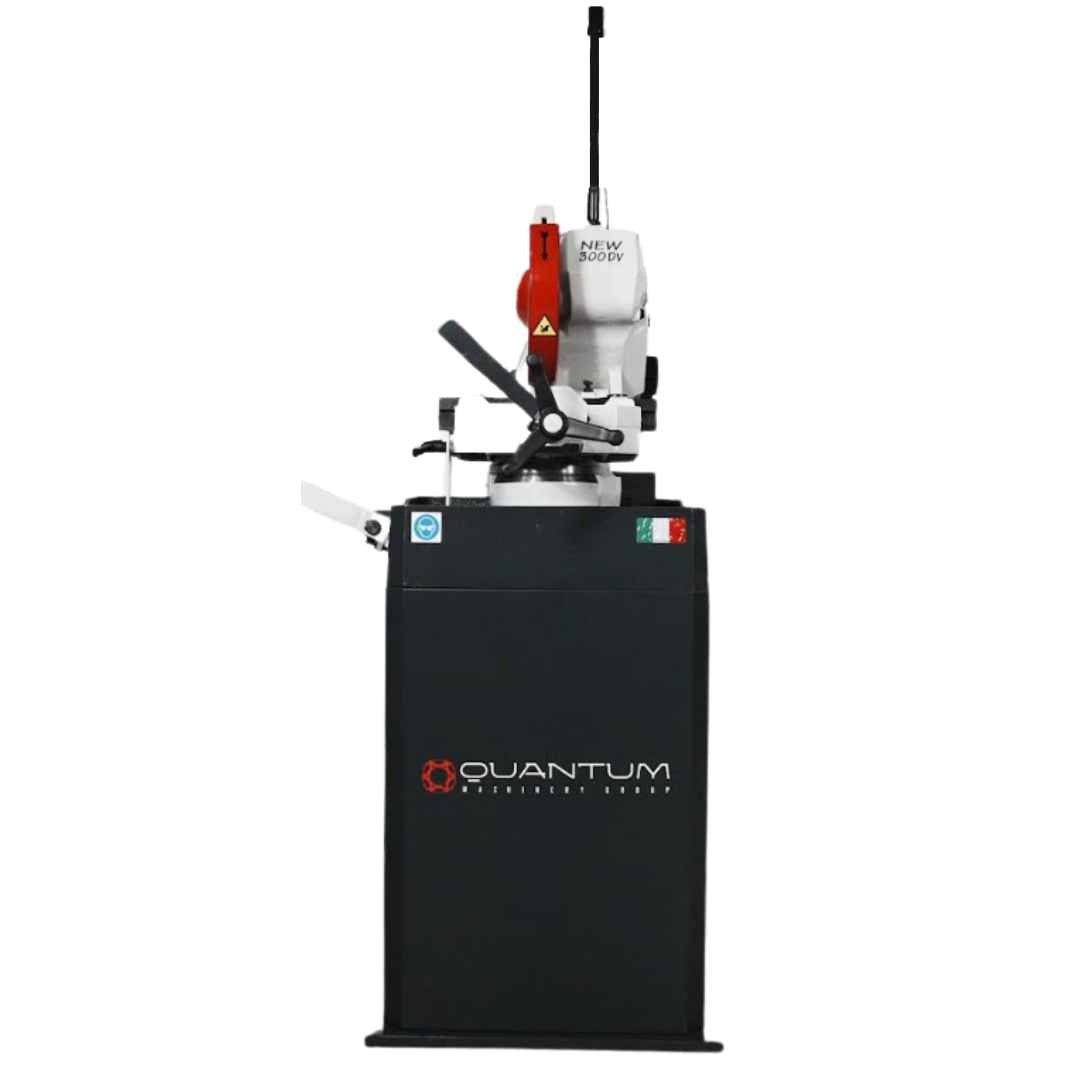

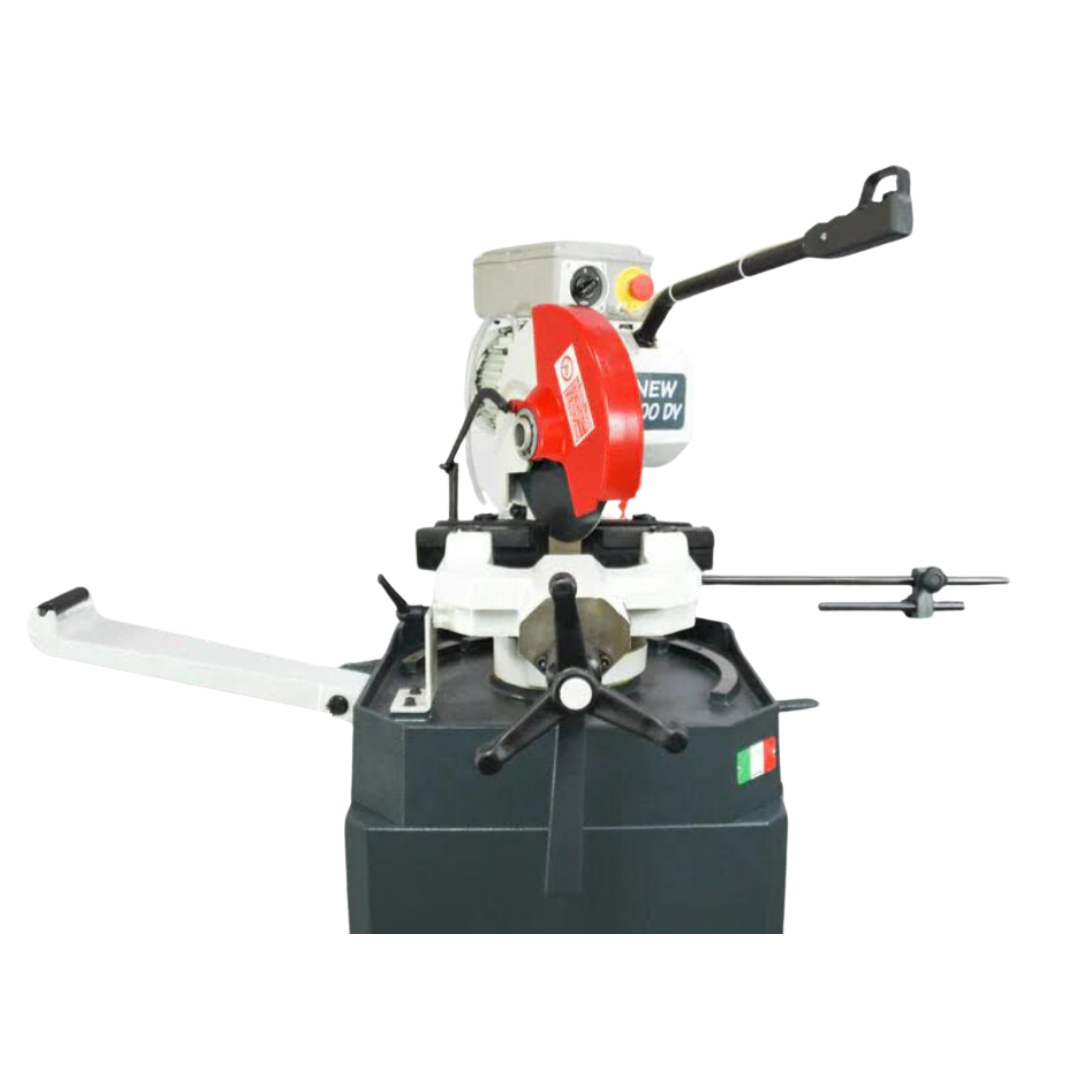

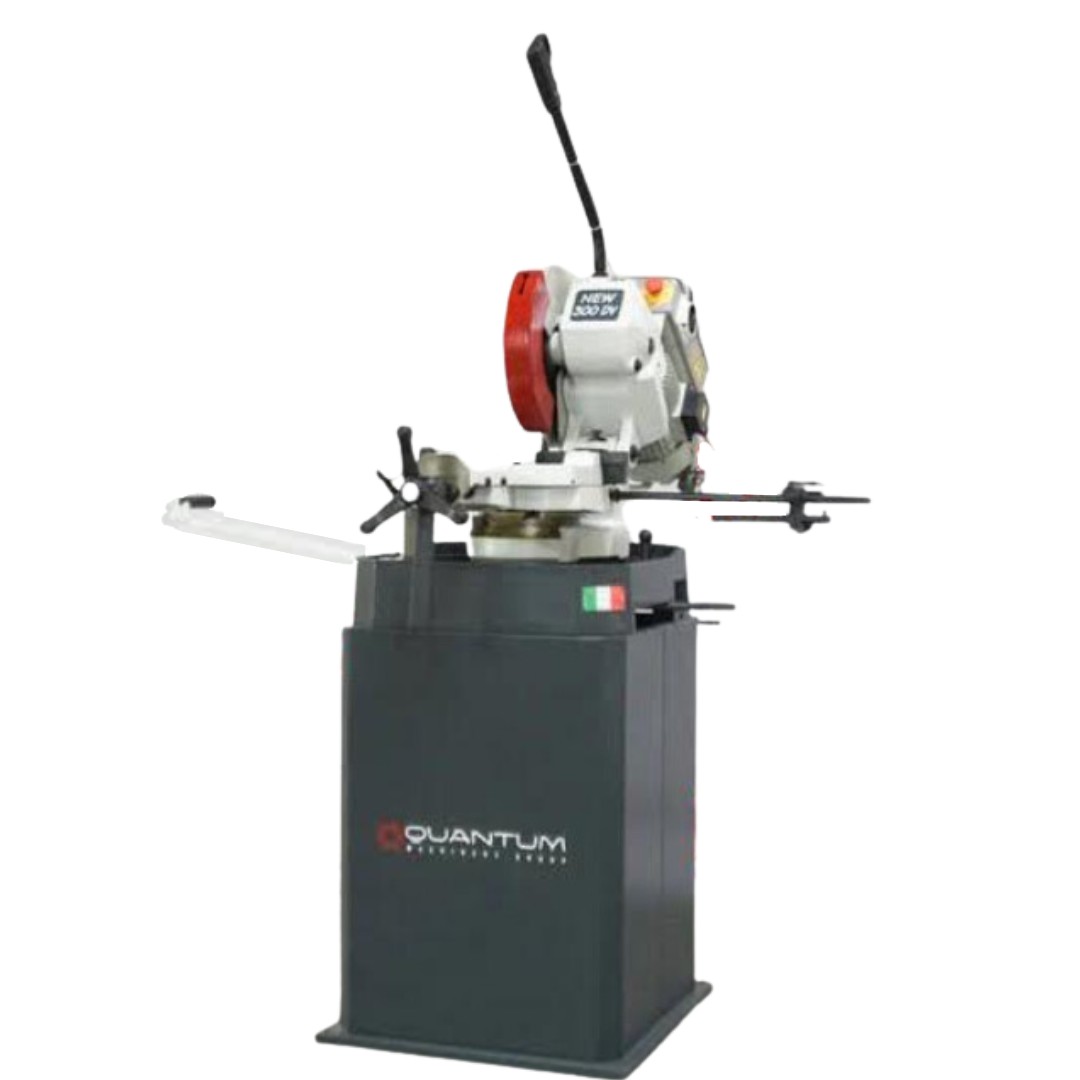

Quantum Machinery 12” 220V Single Phase Manual Pivot-Style Cold Saw 300 EDV
$4,379.05Current price is: $4,379.05.
- Blade Size (Bore HSS): 300mm x 2.5mm x 32mm
- Max Vice Opening: 4.7”
- 2 Speeds: 40 – 80 rpm
- Power-driven Pump: 0.09 KW
Quantum Machinery 12” 220V Single Phase Manual Pivot-Style Cold Saw 300 EDV is a Quantum Machinery Group product in the Cold Saws collection.
Product Details
- Blade Size (Bore HSS): 300mm x 2.5mm x 32mm
- Max Vice Opening: 4.7”
- 2 Speeds: 40 – 80 rpm
- Power-driven Pump: 0.09 KW
- Maximum Cutting Capacities
- Round Tube Straight Cut: 45° Left/Right Cut:
- Straight Cut:
- 45° Left/Right Cut:
- Square Tube Straight Cut: 3.1” 45° Left/Right Cut: 2.75”
- Straight Cut: 3.1”
- 45° Left/Right Cut: 2.75”
- Solid Round Straight Cut: 2.1” 45° Left/Right Cut: 2.9”
- Straight Cut: 2.1”
- 45° Left/Right Cut: 2.9”
- Rectangular Tube Straight Cut: 2.75”H x 4.5”W 45° Left/Right Cut: 2.75”H x 2.75”W
- Straight Cut: 2.75”H x 4.5”W
- 45° Left/Right Cut: 2.75”H x 2.75”W
- Features
- Moveable cutting head: from 45° left up to 45° right
- Double-hinged pin with eccentric bush
- Reduction unit in oil bath
- Double-quick locking vice
- Coolant filter
- Jet separation system to keep the blade oiled
- Sliding counter-vice for longitudinal cutting
- 24V low voltage installation withhold-to-run head control knob
- 0.09 kW power-driven pump for band cooling
- Includes: instruction manual, service tools, & 1 HSS 300mm Cold Saw Blade
- Specifications
- Electrical Requirements: 220V / Single Phase / 60Hz
- Overall Dims: 40” x 58” x 46”
- Machine Weight: 364 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: 300 EDV(1PH)
- Shipping Method: LTL Freight
- Weight: 425 lb
- Dimensions: 48 × 64 × 52 in
| Weight | 425.0 lbs |
|---|---|
| Dimensions | 48.0 × 64.0 × 52.0 in |
| Brand | Quantum Machinery Group |
