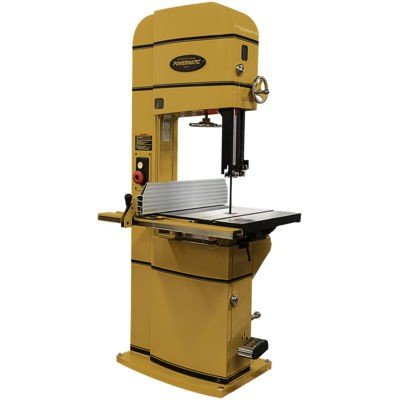

Powermatic PM1800B 18″ Bandsaw 5HP 1Ph 230V
$4,665.60Current price is: $4,665.60.
- 160Blade Length (in)
- 2300/4400 SFPMBlade Speed
- 2300/4400Blade Speed (SFPM)
- 18Cutting Capacity Height (In.)
8 in stock
Overview
Powermatic PM1800B 18" Bandsaw 5HP 1Ph 230V is documented as a Drum Sander from Powermatic Tools. The exact PM9-1791800B configuration is mapped to GT Machinery Solutions SKU JPW1791800B. Recorded technical data includes horsepower: 5 HP, motor power (hp): 5, and motor voltage (v.): 230 only. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Blade Length (in) | 160 |
|---|---|
| Blade Speed | 2300/4400 SFPM |
| Blade Speed (SFPM) | 2300/4400 |
| Cutting Capacity Height (In.) | 18 |
| Cutting Capacity Width (In.) | 18 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (in) | 4 |
| Horsepower | 5 HP |
| Maximum Tilt | 45° |
| Miter Gauge Positive Stops | 45, 90 |
| Motor Current (Amps) | 22 |
| Motor Phase | 1 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Product Type | Drum Sander |
| Stand Type | Floor |
| Table Height from Floor (In.) | 38 |
| Table Size | 24" x 27" |
| Table Size (L x W) (In.) | 24 x 27 |
| Table Tilt (Deg.) | 10 Left, 45 Right |
| Voltage | 230V |
| Warranty | 5 years |
| Weight | 936.000 lbs |
| Weight | 936 lbs |
|---|---|
| Brand | Powermatic Tools |
