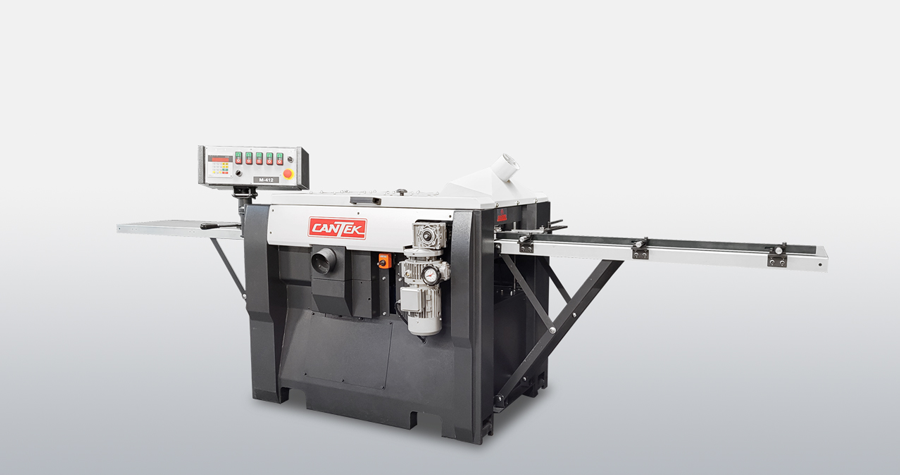

Cantek M412 4 Sided Planer/Molder Three Phase
$14,640.00Current price is: $14,640.00.
- 1216mmHeight
- 1485mmLength
- 3Phase
- 230VPower
5 in stock
Overview
Cantek M412 4 Sided Planer/Molder Three Phase is documented as a Planer Moulder from Cantek America. The exact CANM412-230-3 configuration is mapped to GT Machinery Solutions SKU CANM412. Recorded technical data includes phase: 3, width: 1265mm, and height: 1216mm. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Allows for 4 cutting modes: single two, three and 4-side planing and moulding.
- Individual powerful motor drive for each spindle.
- High quality disco type variable feed speed unit.

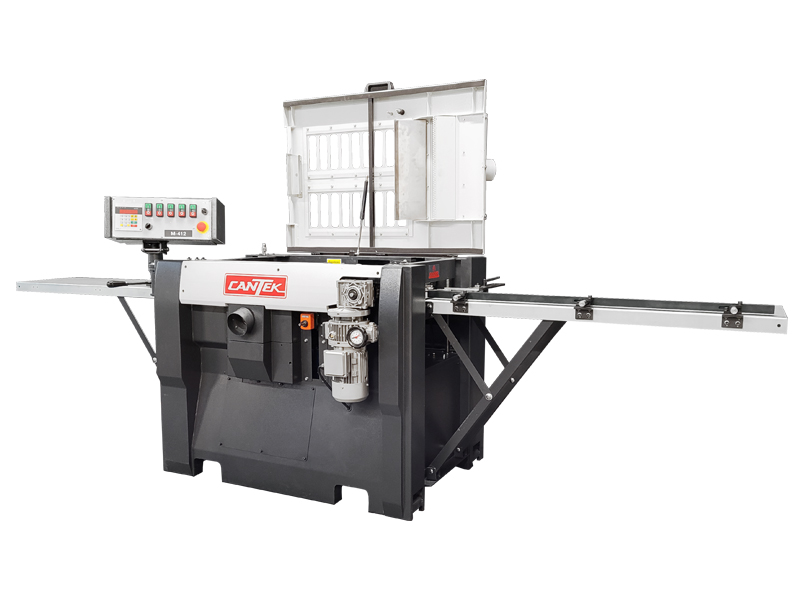

- Automatic machine stop when top guard is opened.
- In feed & outfeed table extensions (optional) for firm support of large word.
- Equipped with 3 depth of cut control plates for bottom cutterhead.
- Sea-thru top guard for viewing cutterheads.

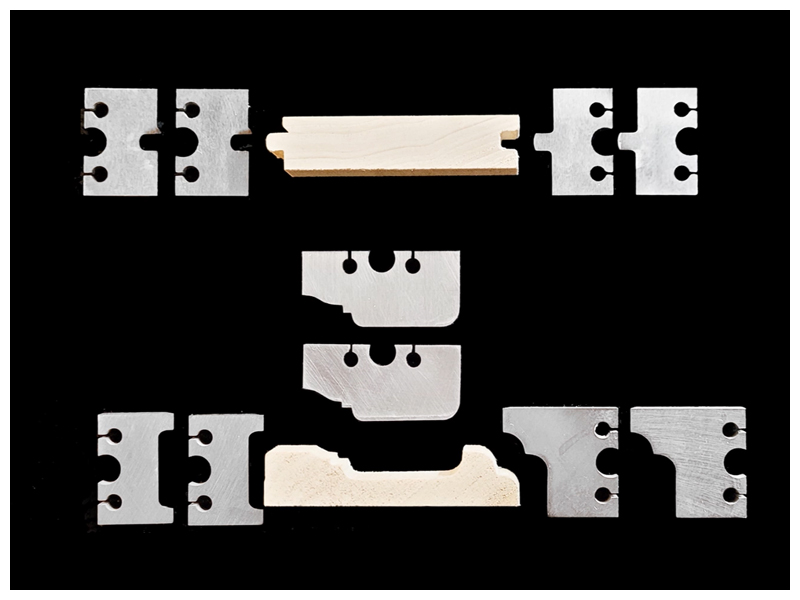

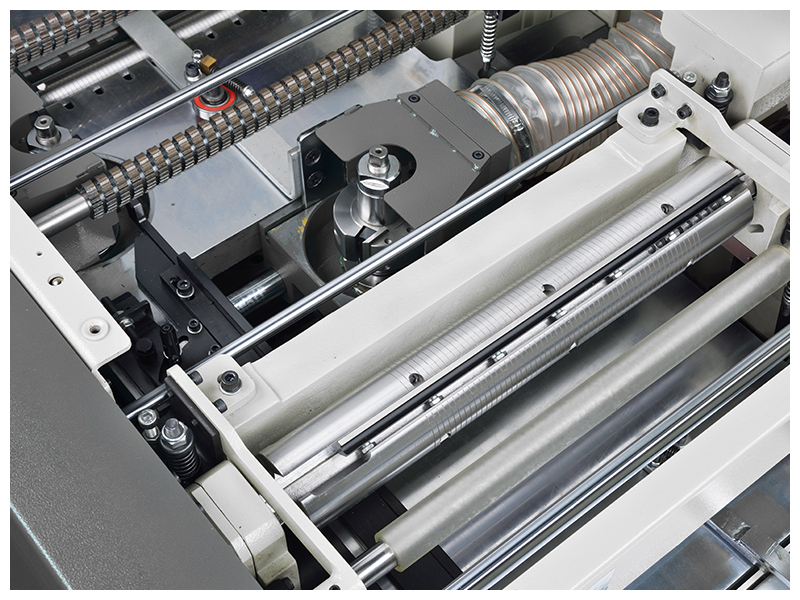

- Comes with straight knives for top / bottom heads
- Does not include side heads

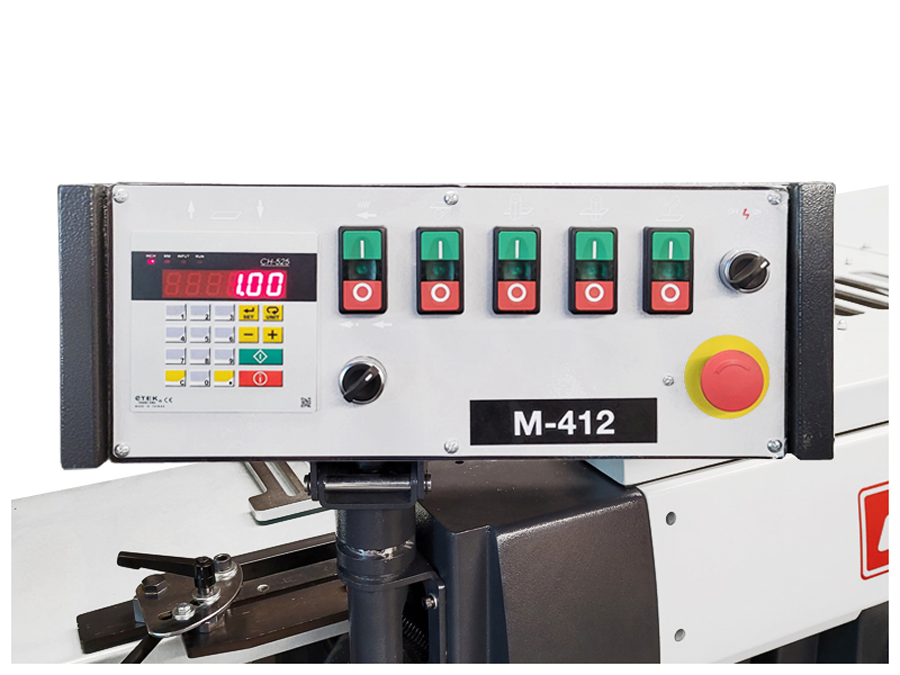

- Each cutterhead is individually controlled on the control panel
Technical Specifications
| Height | 1216mm |
|---|---|
| Length | 1485mm |
| Phase | 3 |
| Power | 230V |
| Product Type | Planer Moulder |
| Weight | 1,610.000 lbs |
| Width | 1265mm |
| Weight | 1610 lbs |
|---|---|
| Brand | Cantek America |
