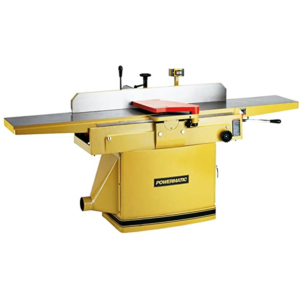

Powermatic PJ1696 16" Jointer 7.5HP 3Ph 230/460V Helical Cutterhead
$8,282.40Current price is: $8,282.40.
Powermatic 60HH 8" Jointer 2HP 1Ph 230V Helical Head
$2,111.40Current price is: $2,111.40.
Powermatic 1285 12″ Jointer 3HP 1Ph 230V Straight Knife Cutterhead
$5,147.40Current price is: $5,147.40.
- 15000Cuts Per Minute
- StraightCutter Block
- 5000Cutter Block Speed
- 5000 RPMCutter Head Speed
4 in stock
Description
Overview
Powermatic 1285 12" Jointer 3HP 1Ph 230V Straight Knife Cutterhead is documented as a Jointer from Powermatic Tools. The exact PM9-1791241 configuration is mapped to GT Machinery Solutions SKU JPW1791241. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230 only. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Cuts Per Minute | 15000 |
|---|---|
| Cutter Block | Straight |
| Cutter Block Speed | 5000 |
| Cutter Head Speed | 5000 RPM |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Horsepower | 3 HP |
| Motor Phase | 1 |
| Motor Power | 3 |
| Motor Voltage (V.) | 230 only |
| Number of Knives | 3 High Speed Steel Straight Knives |
| Phase | 1 |
| Product Type | Jointer |
| Recommended Circuit Size (Amps.) | 30 |
| Table Height from Floor (In.) | 31-5/8 |
| Table Size (L x W) (In.) | 84 x 12 |
| Voltage | 230V |
| Warranty | 5 Years |
| Weight | 946.000 lbs |
Additional information
| Weight | 946 lbs |
|---|---|
| Brand | Powermatic Tools |
Reviews (0)
Shipping & Delivery
Related products
-40%

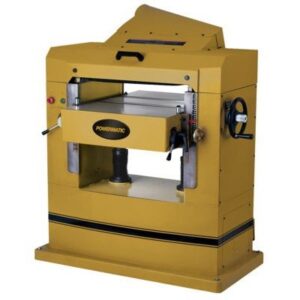

Powermatic 201HH Planer 7.5HP 1Ph 230V
SKU:
JPW1791267
-40%

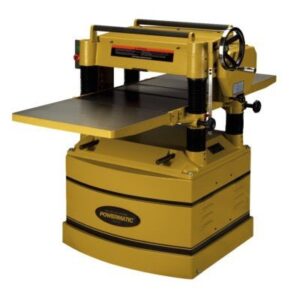

Powermatic 209HH 20″ Planer 5HP 1Ph 230V
