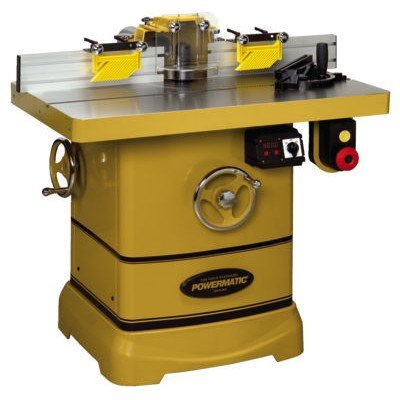

Powermatic PM2700 Shaper 3HP 1Ph 230V Includes 3/4″ & 1-1/4″ Spindle
$3,299.40Current price is: $3,299.40.
- Spindle HeightDigital Readouts
- 600Dust Collection Minimum CFM Required (CFM)
- 4Dust Port Outside Diameter (In.)
- YesElectrical Controls
9 in stock
Overview
Powermatic PM2700 Shaper 3HP 1Ph 230V Includes 3/4" & 1-1/4" Spindle is documented as a Shaper from Powermatic Tools. The exact PM9-1280100C configuration is mapped to GT Machinery Solutions SKU JPW1280100C. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230 only. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Digital Readouts | Spindle Height |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Electrical Controls | Yes |
| Fence Size (L x H) (In.) | 18-3/4 x 4-7/8 |
| Horsepower | 3 HP |
| Motor Current (Amps) | 14 |
| Motor Phase | 1 |
| Motor Power | 3 |
| Motor Voltage (V.) | 230 only |
| Power | 230V |
| Prewired Voltage (V.) | 230 |
| Product Type | Shaper |
| Recommended Circuit Size (Amps.) | 30 |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4" Spindle (3-1/2), 1" Spindle (4-7/8), 1-1/4" Spindle (5-1/8) |
| Spindle Stroke | 7,500, 10,000 |
| Spindle Travel (In.) | 4 |
| Spindles Included | 3/4, 1-1/4 |
| Style (Type) | Shaper |
| Table Height from Floor (In.) | 35-1/2 |
| Table Inserts (In.) | 2-1/2 x 4-1/8 x 5-3/4 |
| Table Opening | 7.33 |
| Table Size (In.) | 40 x 30 |
| Weight | 690.000 lbs |
| Weight | 690 lbs |
|---|---|
| Brand | Powermatic Tools |
